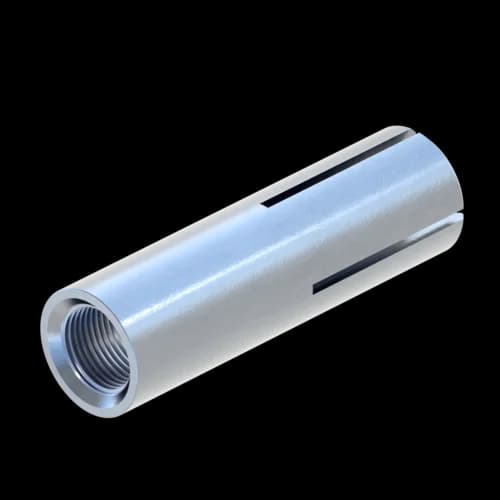

Drop-in Anchor AN A4
Group: 1702
Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete
Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements
Overview of Types
General Information
Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete. Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. To be used in structural parts under dry indoor conditions, as well as outdoor constructions (including industrial ambiance and coastal areas) or damp locations provided no special aggressive conditions are given. No special drill is required. Setting Tool for Drive Plug is to be used as setting tool for distance-controlled forced expansion. Suitable for put-before assembly.
Certification
For the multiple fixation of non-structural systems Sikla Approval ETA-10/0258 (M8-M12), for anchorage in non-cracked concrete Sikla Approval ETA-10/0257 (M8-M16), Fire Protection Certification, VdS-conform, FM-Approval ≥ M10
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
For load values, see additional documents.
Type M12x50 and M16x65: Delivery date on request – goods are procured on an order-by-order basis.
Software
This product is available in the following software.
Installation
As setting tool the respective expansion cone for Drive plug is to be used.
The 'intelligent' expansion cone facilitates the assembly with drill hole tolerances in the bore hole diameters or with different concrete. Due to the controlled expansion the needed edge and centre distances are considerably reduced.
Documents
- Drop-In Anchor AN/AN ES - ETA 10/0258
PDF (3.93MB)
- Drop-In Anchor AN / AN ES - ETA 10/0257
PDF (2.43MB)
- FM Approval - Sikla Anchors AN
PDF (0.21MB)
- VdS Approval - Sikla Anchors – Types AN, BZ, TSM (DN 0–100)
PDF (0.23MB)
