TCS 0 LC

Beam Clamp TCS 0 LC

Group: 1337

Part number 156648

Solid connection element for secure mounting of pipes, ducts, and devices on steel profiles such as I-beams, T-beams, U-beams, and angle beams.

Flexible alignment even on inclined beams when combined with the universal joint – for vertical installations.

Versatile use as a single fastener or for mounting crossbars and cantilevered structures.

Technical Data
Installation
Documents

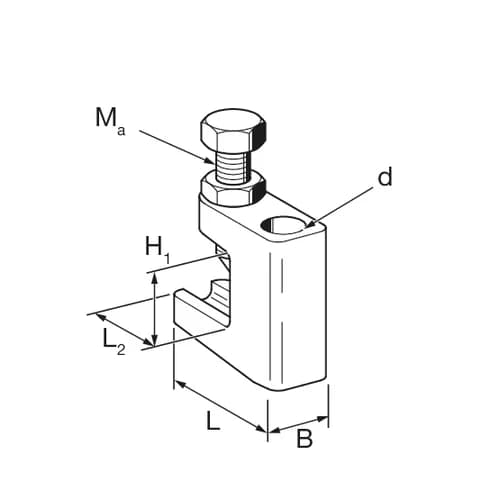

Technical Data

B	16,8 mm
d	10,5 mm
L	44,2 mm
L₂	25,3 mm
H₁	18,2 mm
M_a	M8

Pre-assembled with clamping bolt and locking nut.

Load range

-V_Z,perm.

3,50 kN

The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.

Technical specifications

Material base body	cast steel
Material connecting element	steel
Class	8.8
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Certification

Approved and accepted by VdS and FM for use with stationary fire extinguishing systems.

Installation

Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting structures. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.

Note: Respect relevant mounting instructions! For FM-construction use thread ≥ M10 only!

Documents

Approvals / FM

FM Approval - Sikla Beam Clamps TCS
PDF (0.57MB)
