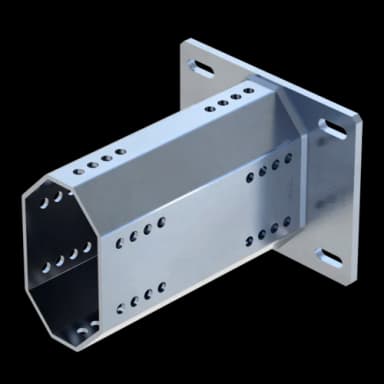

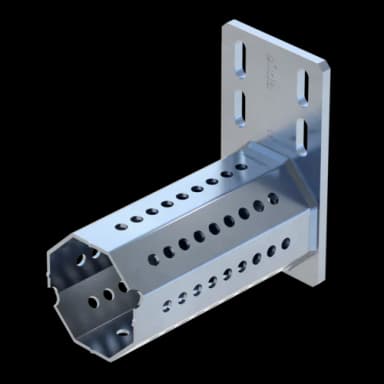

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised e.g. for cable trays and downpipes.

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100/160.

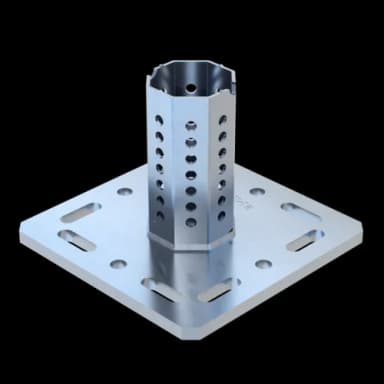

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.

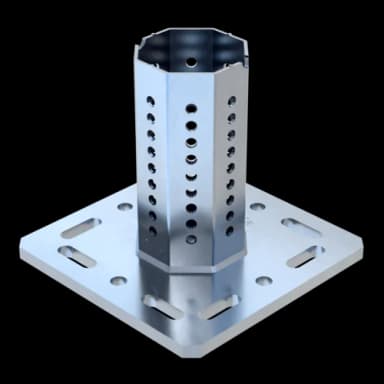

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.

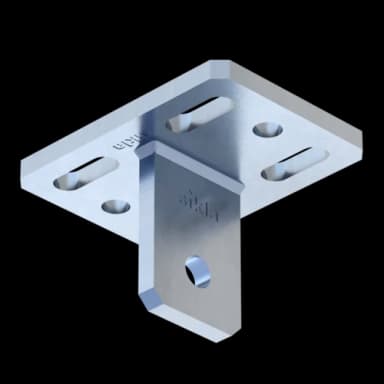

Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

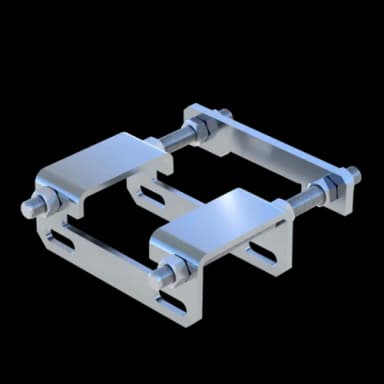

Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 80 beam sections.

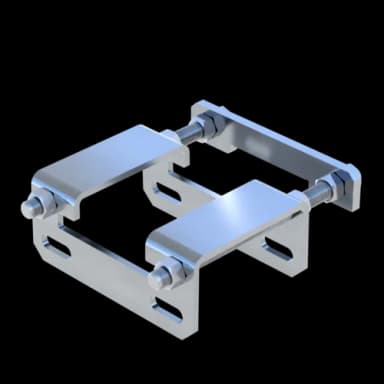

Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 100 beam sections.

Ideal for connecting two Sikla Channels MS 41 as well as for mounting the GS G1 slide set for channel system 41.

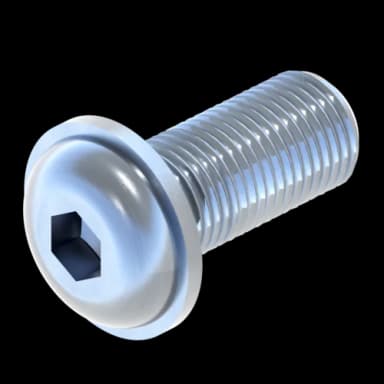

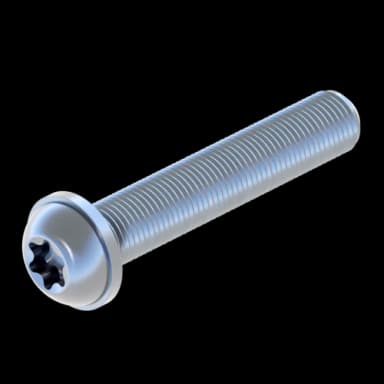

The Flange Screws are self-forming screws. Type TT M10 x 60 is only suitable for connecting mounting rails <= 41 mm high with siFramo profiles.

Support plate for gratings in combination with Sikla components on steel beams. The support plate is clamped to the steel beam and closes the gap between the base plate and the cut-out grating. This creates a fall protection device and eliminates the need for welded upstands on the grating edge.

Floor plates for professional fastening of gratings on walkways, work platforms, pedestals, or similar applications. Designed for gratings with a mesh size of at least 10 x 10 mm to a maximum of 40 x 40 mm.

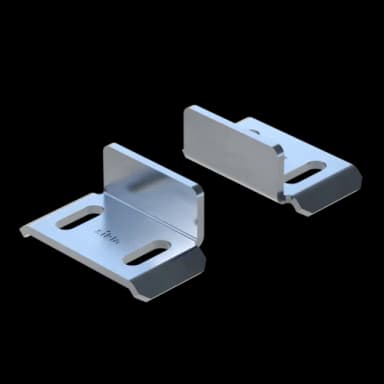

Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F80 beam sections. Type L can guide the Pipe Shoe in the axial direction, but does not have any lift-off protection.

Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F80 beam sections. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.

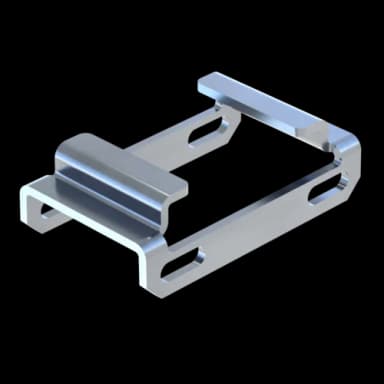

Element for modification of siMotec Sliding Pipe Shoes to Guided Pipe Shoes on siFramo F80 beam sections.

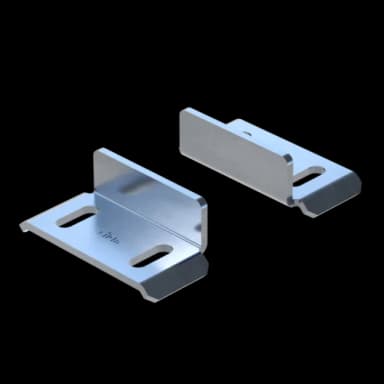

Using the Guiding Bracket FW, it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F100 beam sections. Type L can guide the Pipe Shoe in the axial direction, but does not have any lift-off protection.

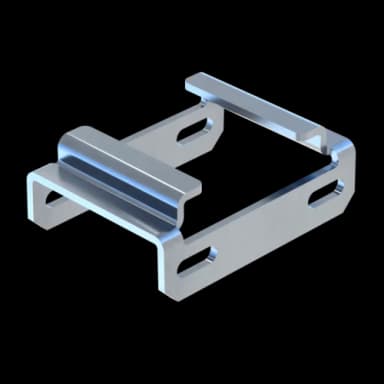

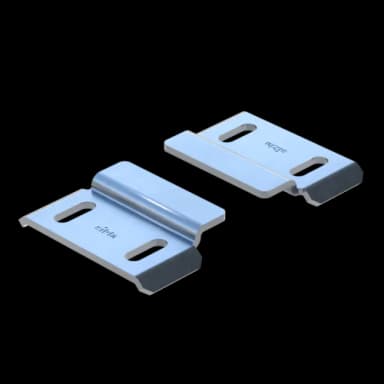

Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F100 beam sections. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.

Element for modification of siMotec Sliding Pipe Shoes to Guided Pipe Shoes on siFramo F100 beam sections.

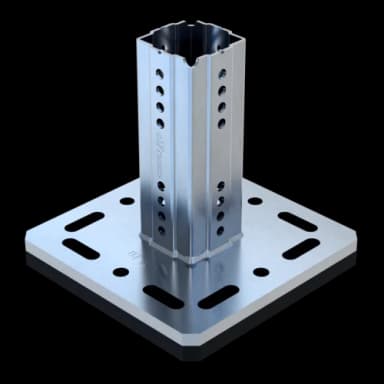

Integrated footplate and permeable rubber compound mat to provide a solution for the support of building services, without the need for penetrative supports. In combination with the Sikla siFramo TP F 80 section, any frame structure may be built up from the footplates. Especially suitable for maintaining the thermal and waterproofing integrity of a roof or basement floor as no penetrative fixings are required to secure the footplates for service supports.

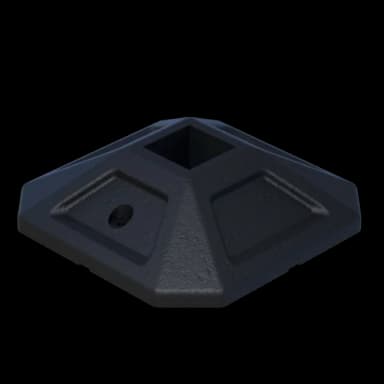

Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System siFramo 80 any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways. The Beam Section TP F 80 can be mounted to the Insulated Foot SHB SQF F 80.

Adapter plate for installing pipe clamps to Beam Section TP F80 or Channel System by means of threaded tube 1/2'.

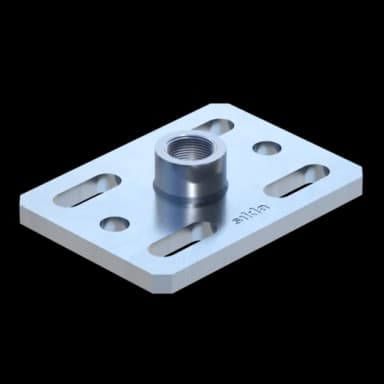

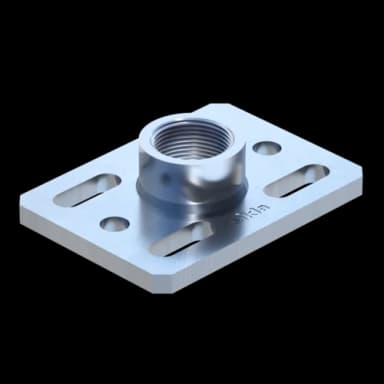

Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F80 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.

Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F100 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.
