Grid Fixation FBT HCP
Group: A441

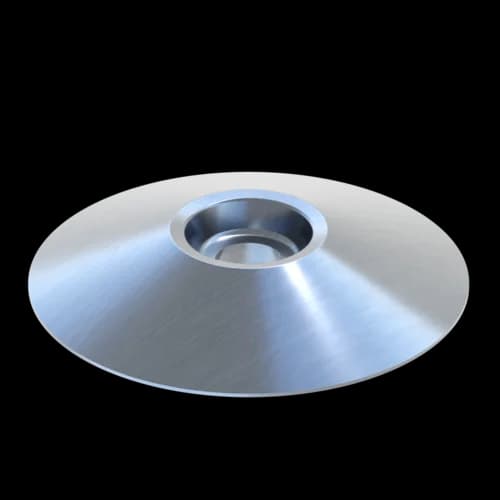

Floor plates for professional mounting of gratings on walkways, work platforms, pedestals or similar applications
Designed for gratings with mesh sizes from 10 x 10 mm up to 40 x 40 mm
Overview of Types
General Information
Floor plates for professional fastening of gratings on walkways, work platforms, pedestals, or similar applications. Designed for gratings with a mesh size of at least 10 x 10 mm to a maximum of 40 x 40 mm.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation

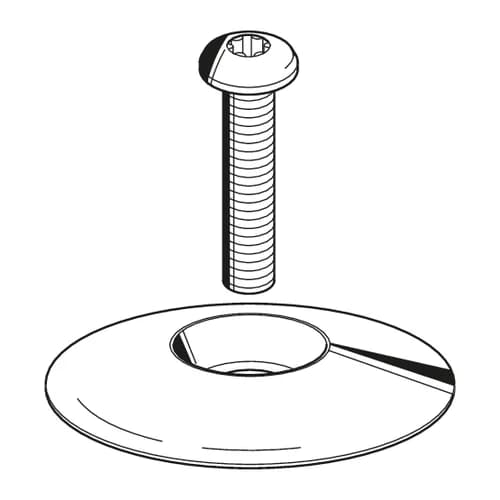

Place four floor plates in the corners of each grating and connect them to the substructure. Observe the relevant guidelines and installation instructions.
Filling rod width: at least 10 mm
Support bar width: up to approx. 40 mm
