An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.

An Assembly Group for use as a guided support with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted using the Threaded Rod M10. From DN 65 upwards, the Slide Set GS 2G2-PL is used to create two pipe supports. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Sikla 41 MS channel system. The height is adjusted via the Threaded Tube 1/2'. From DN 65 upwards, the Slide Set GS H3G2-PL is used to create two pipe supports.

An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.

An Assembly Group for the creation of guided supports for pipes without complex requirements and without heat insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure. A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the captive plastic linings and slide plate, meaning that VA pipes can also be secured, for example.

The Beam Clamp 41 allows for a direct connection of Sikla 41mm slotted strut channel to beam without having this obstruction. In order to achieve this, the foot of the Beam Clamp must be inserted into the slot on the back of the channel.

The Beam Clamp TCS 41 allows for a direct connection of Sikla 41mm slotted strut channel without having this obstruction. If the channel opening is supposed to be in beam direction, the Beam Clamp TCS 41 can easily be fixed within the channel's opening as we know it from type TCS 1.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

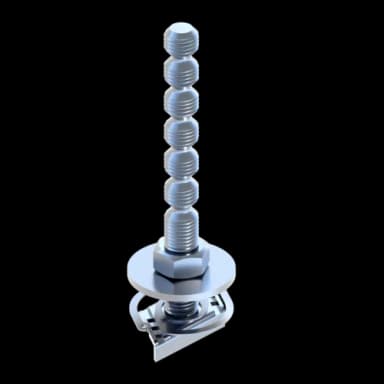

Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27. Time-saving due to a pre-assembled Blockset consisting of 4 individual parts. Easy height adjustment within the channel. Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required. Grooved rod, prevents unintended unscrewing. Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.

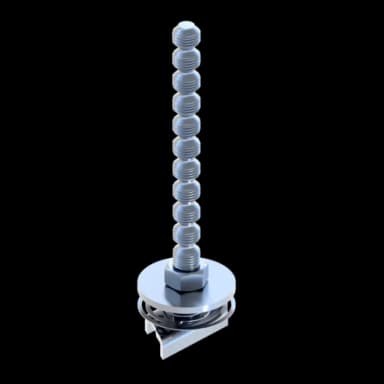

Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27. Time-saving due to a pre-assembled Blockset consisting of 4 individual parts. Easy height adjustment within the channel. Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required. Grooved rod, prevents unintended unscrewing. Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.

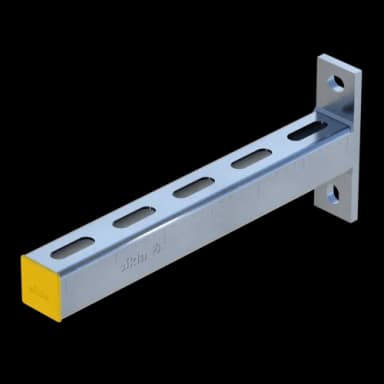

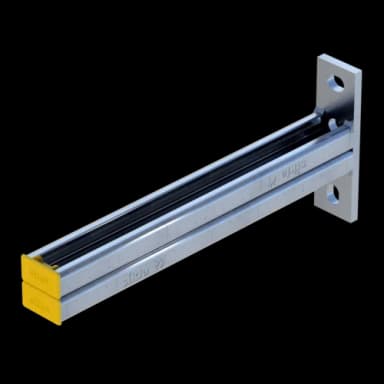

Recommended for single-armed wall suspension or fixing to other building structures.

Recommended for single-armed wall suspension or fixing to other building structures. Also available as a double version.

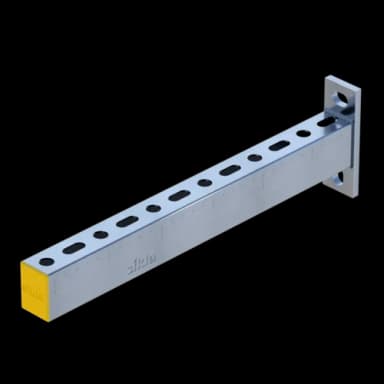

Recommended for single-armed wall suspension or fixing to other building structures.

Recommended for single-armed wall suspension or fixing to other building structures.

Recommended for single-armed wall suspension or fixing to other building structures. Also available as a double version.

Ready-to-use bracket for one-armed mounting to Sikla Channel MS 41.

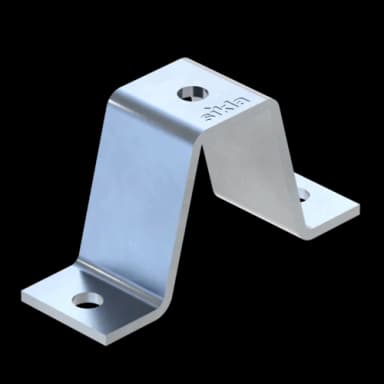

For fixing Sikla Channels: directly to the building structure or directly onto other channels for frame assembly. When mounting the Channel Holder onto freestanding or embedded channels, we recommend the use of Speed Nut CC bolts.

Comprehensive bracing construction of Sikla Channels: directly to the building structure or onto other channels for frame construction.

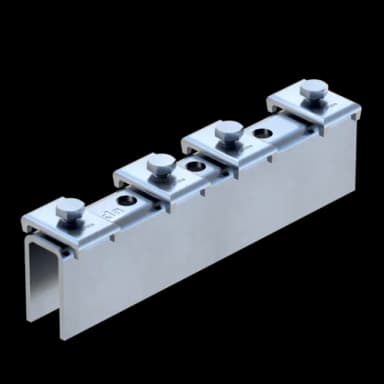

Channel Connector for easy and safe extension or joining of Sikla Channels on site or for pre-assembly in workshops.

Channel Connector for easy and safe extension or joining of Sikla Channels on site or for pre-assembly in workshops.

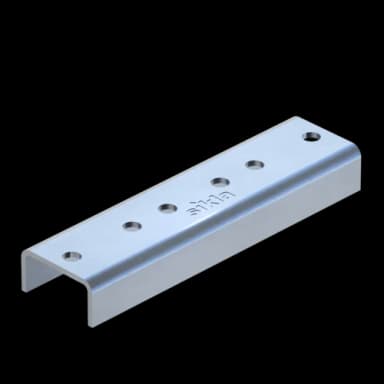

Element for connecting Channels. The multiple bearing of the Channel is to be secured. The Channel Connector should not to be used between the last two bearing points. In combination with Channels > 41/21 the admissible limit has to be respected.

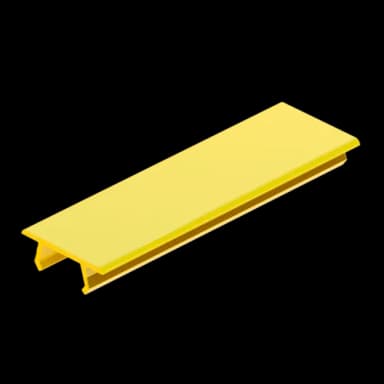

For covering the opening of channels. Prevents build-up of dirt deposits inside the channel. Provdes: easy cleaning due to even surface dustproof transitions tight fit by means of strong clamping free of halogens and lack disturbing substances
