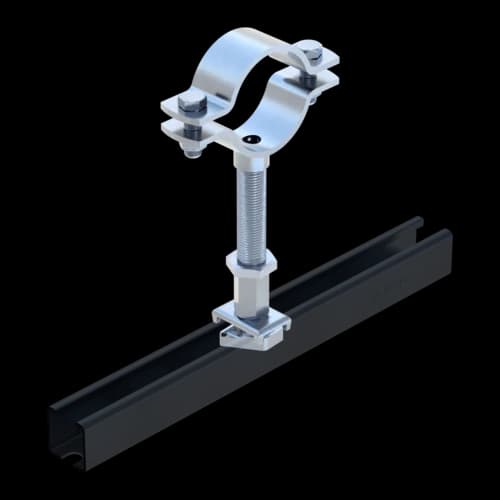

Assembly Group BG11 MS 41-1/2'' HCP
Group: 1102
Contains components for a permanent pipe connection with heavy pipe clamp Stabil I-1/2'
Designed for use with the Sikla MS 41 channel system
Height adjustment via Threaded Tube 1/2'
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1102
Contains components for a permanent pipe connection with heavy pipe clamp Stabil I-1/2'
Designed for use with the Sikla MS 41 channel system
Height adjustment via Threaded Tube 1/2'
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
Info | Type | Size min. | Size max. | DN | Weight | Quantity | Part number | |
| BG11 MS 41-1/2'' DN 15 HCP | 16,00 mm | 22,00 mm | DN 15 (1/2") | 0,92 kg/pcs. | 1 pcs. | 110153 | ||
| BG11 MS 41-1/2'' DN 20 HCP | 23,00 mm | 27,00 mm | DN 20 (3/4") | 0,93 kg/pcs. | 1 pcs. | 110154 | ||
| BG11 MS 41-1/2'' DN 25 HCP | 30,00 mm | 34,00 mm | DN 25 (1") | 0,96 kg/pcs. | 1 pcs. | 110155 | ||
| BG11 MS 41-1/2'' DN 32 HCP | 39,00 mm | 44,00 mm | DN 32 (1 1/4") | 1 kg/pcs. | 1 pcs. | 110156 | ||
| BG11 MS 41-1/2'' DN 40 HCP | 44,00 mm | 49,00 mm | DN 40 (1 1/2") | 1,036 kg/pcs. | 1 pcs. | 110157 | ||
| BG11 MS 41-1/2'' DN 50 HCP | 57,00 mm | 61,00 mm | DN 50 (2") | 1,24 kg/pcs. | 1 pcs. | 110158 | ||
| BG11 MS 41-1/2'' DN 65 HCP | 73,00 mm | 77,00 mm | DN 65 (2 1/2") | 1,32 kg/pcs. | 1 pcs. | 110159 | ||
| BG11 MS 41-1/2'' DN 80 HCP | 85,00 mm | 89,00 mm | DN 80 (3") | 1,38 kg/pcs. | 1 pcs. | 110160 | ||
| BG11 MS 41-1/2'' DN 100 HCP | 109,00 mm | 116,00 mm | DN 100 (4") | 1,67 kg/pcs. | 1 pcs. | 110161 | ||
An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.
Certification
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP, electro galvanized (Fe//Zn) |
Corrosion protection class | C4 |
