TCS 41
Beam Clamp TCS 41 HCP
Group: 1837

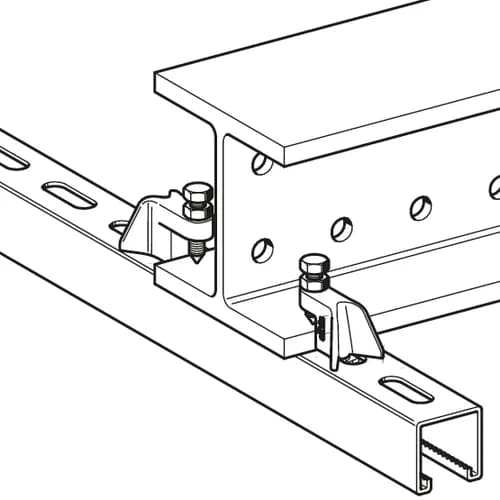

Connection of Sikla Channel MS 41 directly to steel beams
No obstruction of the channel opening
Overview of Types
General Information

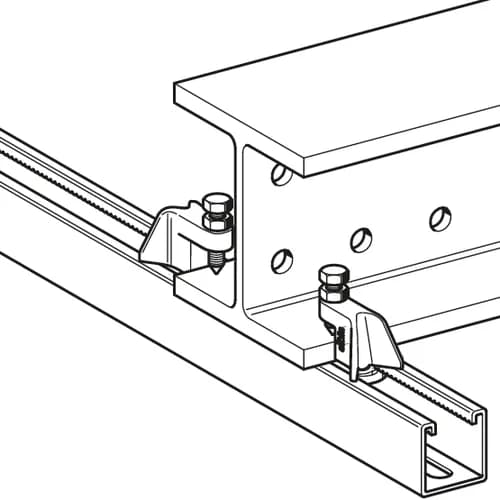

The Beam Clamp TCS 41 allows for a direct connection of Sikla 41mm slotted strut channel without having this obstruction. If the channel opening is supposed to be in beam direction, the Beam Clamp TCS 41 can easily be fixed within the channel's opening as we know it from type TCS 1.
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
TCS 41 HCP | 4,00 kN |
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.
Software
This product is available in the following software.
Installation
Insert the foot of the Beam Clamp into the slot on the back of the channel, twist by 90° and push it against the beam's flange. First tighten bolt of Beam Clamp (hand-tight), then tighten further with 1 1/2 turns. The sharpened tip of the bolt will dent the beam thus providing a high level of safety. At last tighten locking nut.
Every channel (statically determined) has to be fixed at least twice.
Clamping range on parallel flange: 20 mm
