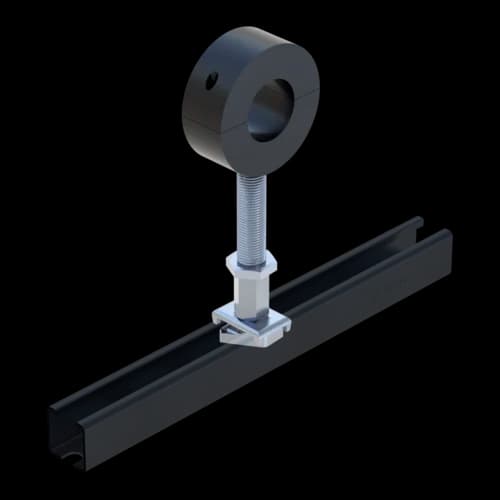

Assembly Group BG48 MS 41-1/2'' HCP
Group: 1102
Contains components for a permanent pipe connection with insulated Chilled Water Clamp RB for chiller plants and cool water systems
Designed for use with the Sikla MS 41 channel system
Height adjustment via Threaded Tube 1/2'
Overview of Types
General Information

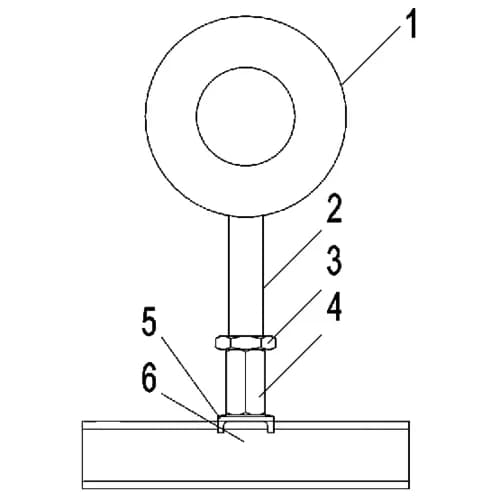

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.
Certification
Technical specifications
Max. temperature | 105 °C |
Min. temperature | -50 °C |
Thermal Conductivity λ {0°C} | λ 0,045 W/Mk |
Fire Performance | B2 according to DIN 4102 |
Bulk Density | 250,00 kg/m³ |
Water vapour diffusion resistance factor | µ 1200 |
Material base body | steel |
Material insulation body | PUR |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn), HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
