Product catalogue

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

For the installation of pipes required for all M&E services in industrial, residential and public buildings. Particularly suitable for soundproof pipe installation according to DIN 4109.

For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings (as per DIN 4109). Suitable for ceiling, floor and wall mounting. The form-fitting rubber profile is additionally glued in place, making it completely secure and allowing the pipe to be rotated and slid without any problems during installation, without the rubber becoming jammed.

For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings (as per DIN 4109). Suitable for ceiling, floor and wall mounting.

For installation of pipes required for all M&E services in industrial, residential and public buildings. In combination with Triple Thread Connector NT 3G the suspension of pipe clamps up to dia. 303 mm is possible.

Effective solution for structured sound decoupling, also in combination with the Flange Clamp Fit SFK for sound insulation requirements.

For installation of pipes required for M&E services and in plant construction.

For soundproof installation of pipes in M&E services and plant construction.

For soundproof installation of pipes in M&E services and plant construction (as per DIN 4109).

Industrial pipe clamp following VGB-R 510 L for standard industrial pipe supports. The pipe clamp Stabil Form C LK can be used as pendulum suspension or as part of a rod hanger.

Heavy pipe clamp for industrial application.

Heavy pipe clamp for industrial application.

For particularly high static requirements in plant construction. Design similar to DIN 3567. The perforations on both sides allow the application of standardised bolts and threaded rods out of the Sikla product range. If fixed on both sides by threaded rods M12 or M16 or threaded tubes, we recommend the application of the Support Cone SMD 1. In addition to be applied for the design of Fixed Points or Sliding Supports by welding to T-Sections.

For particularly high static requirements in plant construction. Design similar to DIN 3567. The perforations on both sides allow the application of standardised bolts and threaded nuts out of the Sikla product range.

For pipeline installations of fixed fire entinguishing systems, mainly used for Sprinkler systems.

For pipeline installations of fixed fire entinguishing systems, mainly used for Sprinkler systems.

For pipeline installations of fixed fire entinguishing systems, mainly used for Sprinkler Systems.

For pipeline installations of fixed fire extinguishing systems, mainly used for Sprinkler systems for soundproof installations also according to DIN 4109.

For pipeline installations of fixed fire extinguishing systems, mainly used for Sprinkler systems.

Height-adjustable, single-clamp pipe shoe with a delivery height of 90 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

Height-adjustable, single-clamp pipe shoe with a delivery height of 150 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

Height-adjustable, single-clamp pipe shoe with a delivery height of 200 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

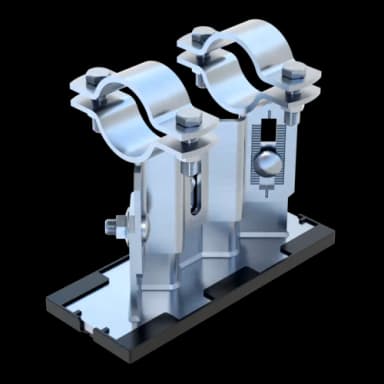

Height-adjustable, double-clamp pipe shoe with a delivery height of 90 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

Height-adjustable, double-clamp pipe shoe with a delivery height of 150 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.
