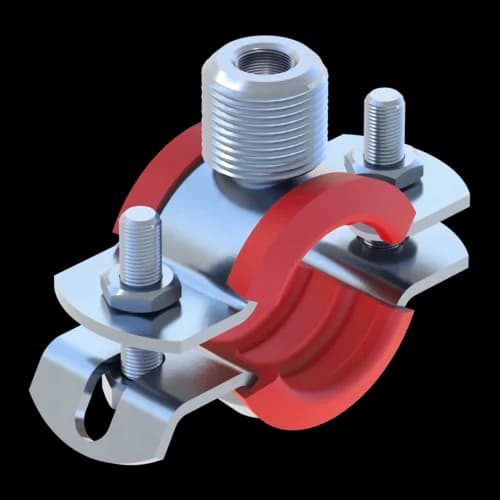

Installation of pipes required for all M&E services - robust and reliable
With sound insulation insert for sound-decoupled pipe mounting – ideal for increased sound insulation requirements.
For VdS applications > 2“ to 4”, at least M10 must be used.
Tightening torques:
| Size range [mm] | Tightening torque [Nm] |
|---|---|
| 14 - 65 | 2 |
| 67 - 115 | 3 |
| 124 - 162 | 5 |
| 165 - 305 | 10 |
PDF (993 KB)
PDF (203 KB)
Info | Type | Size min. | Size max. | Thread connection | Weight | Quantity | Part number |
For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings (as per DIN 4109). Suitable for ceiling, floor and wall mounting.
Certification
This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.
VdS Approval No. G4950064 up to 8"
Max. temperature insulation | 200 °C |
Min. temperature insulation | -60 °C |
Primary element material | steel |
Isolating element material | silicone |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | -VZ,perm. |
STABIL D-3G SIL 14- 18 | 1,80 kN |
STABIL D-3G SIL 19- 23 | 1,80 kN |
STABIL D-3G SIL 24- 28 | 2,00 kN |
STABIL D-3G SIL 29- 33 |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
