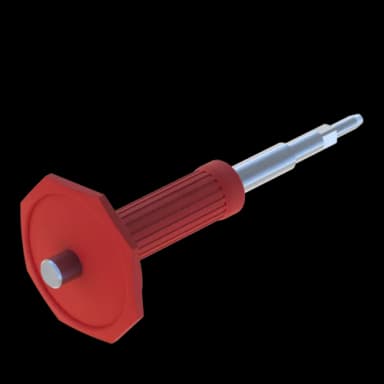

Setting tool for Drive Plug equipped with check mark. The Expanding Mandrel with hand shield is set on top of the anchor sleeve and creates a visible mark, confirming the correct assembly.

Suitable for Hole Saws LS 22 and LS 25. Can be fitted into all standard drills via hexagon holder.

Spare part for Piercing Tool LOT 3.

Instrument for making holes for Sikla Toggle Studs.

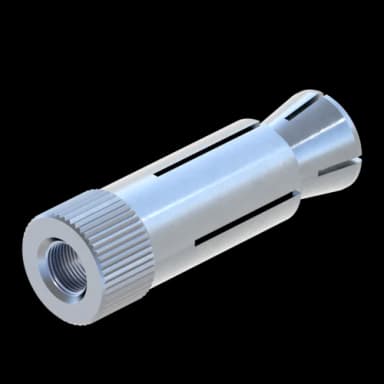

Internal thread anchor to be used in pre-stressed hollow concrete slabs. Suitable for suspension of pipe lines, channels, etc. considering the approval regulations for the use with threaded rods or screw. Only to be used with construction components under dry indoor conditions. The general technical approval allows the anchor to be installed even if the drill hole does not hit the cavity.

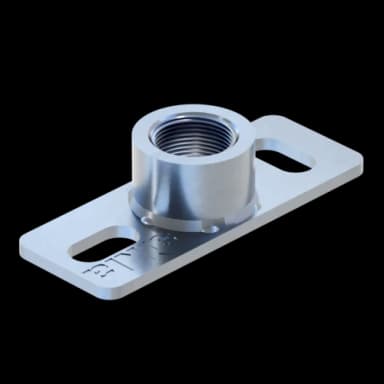

Used in combination with profiled beams as a holder for single-point mountings or for mounting crossbars.

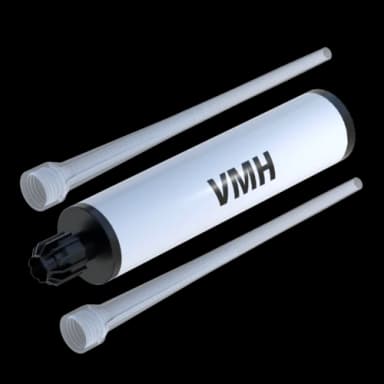

The Sikla Injection System VMH is a universal chemical fastening for use in uncoated FD/FDE concrete surfaces in LAU systems. The Resin Anchor Rod VMU-A A4 is used for anchoring in WHG surfaces. It can also be used for cracked and non-cracked concrete for anchoring the highest loads. The Resin Anchor Rod VMU-A or a commercially available threaded rod with proof of strength (acceptance certificate 3.1) is used as an anchoring element for this purpose. By means of the dispenser gun the components are injected through the mixer nozzle into the drill hole or with perforated brick into the perforated sleeve. This ensures that the anchoring element is securely anchored to the substrate. The VMH enables fastenings that are repeatedly exposed to high temperatures (+160°C) thanks to high short-term temperatures. The VMH is approved for use under seismic action according to the performance categories C1 and C2.

The Sikla Injection System VMU plus is an universal chemical fastening system for almost all applications and building material. The Resin VMU plus can be used in non-cracked concrete, solid and perforated brick as well as in cracked concrete. To be used with a Resin Anchor Rod VMU-A or a standard threaded rod with proof of strength (approval certificate 3.1). By means of the dispenser gun the components are injected through the mixer nozzle into the drill hole or with perforated brick into the perforated sleeve. The injection adhesive cures and gives a secure fastening to the base material. For perforated bricks a perforated sleeve has to be used additionally. The VMU plus is approved for use under seismic action according to the performance category C1 (Concrete).

Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).

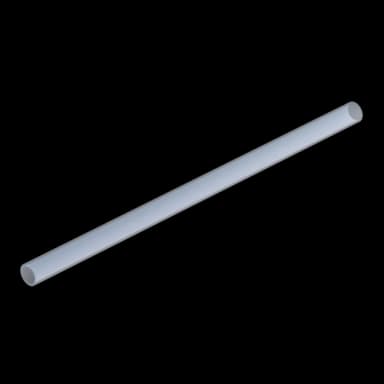

For extending the static mixer for greater drilling depths.

Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).

The Sikla Injection System VMH is a universal chemical fastening for use in uncoated FD/FDE concrete surfaces in LAU systems. The Resin Anchor Rod VMU-A A4 is used for anchoring in WHG surfaces. It can also be used for cracked and non-cracked concrete for anchoring the highest loads. The Resin Anchor Rod VMU-A or a commercially available threaded rod with proof of strength (acceptance certificate 3.1) is used as an anchoring element for this purpose. By means of the dispenser gun the components are injected through the mixer nozzle into the drill hole or with perforated brick into the perforated sleeve. This ensures that the anchoring element is securely anchored to the substrate. The VMH enables fastenings that are repeatedly exposed to high temperatures (+160°C) thanks to high short-term temperatures. The VMH is approved for use under seismic action according to the performance categories C1 and C2.

For wall, ceiling and floor installation of mounting elements in M&E services.

For wall, ceiling and floor installation for mounting elements in M&E services.

Element for fixation to wall, ceiling and floor for installations in M&E services.

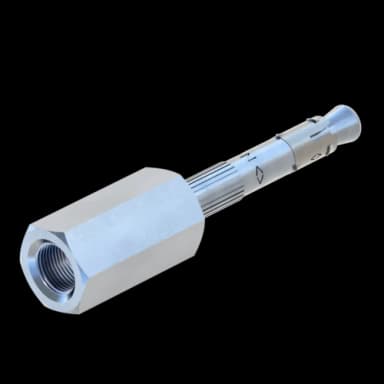

Suitable for the quick and easy mounting of components to a concrete soffit or shear wall. The internal dual thread M8/M10 allows for a direct easy connection with the Nail Anchor (e.g. M&E service supports). The reduced drilling depth of 35 mm and the bore dia. of 6 mm minimise the risk of hitting a rebar during installation and reduces the overall cost of drilling.

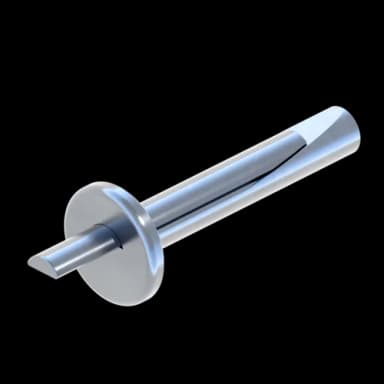

Suitable for push-through mounting solutions for quick and safe fixation to concrete ceilings or walls in closed rooms - not suitable for damp locations. Easy drilling (6 mm only ) and simple impact mounting.

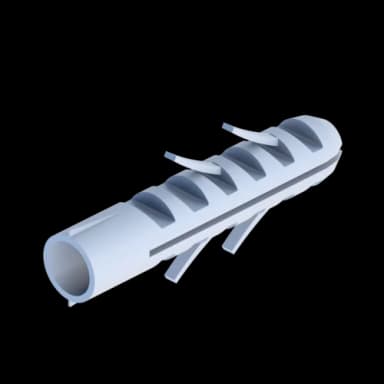

Plastic anchor consisting of a sleeve and expansion area for installtion in concrete or masonry. Screwing in the fastener presses the wall firmly against the drill hole.

Perforated sleeve to be used in perforated brick in combination with Anchor Rods VMU. The version VM-SH is equipped with a convenient arrester clack, avoiding a slipping into the drill hole. For larger anchoring depths, the metal sleeves VM-SH are available.

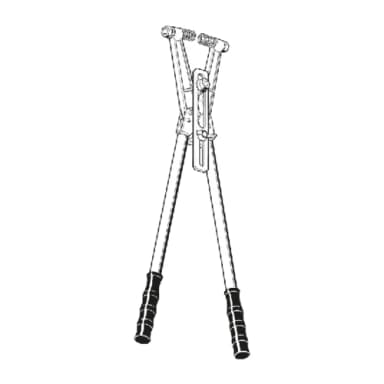

For simultaneously punching two holes of ø 10.5 mm into trapezoidal corrugated roofing of a maximum thickness of 1.2 mm, providing for the subsequent mounting of a Sikla Roof Hanger. The optimised transformation allows already with very less strength a high cutting force at the hole punches. Thus several successively piercings or piercings in thicker sheets are possible without problems. Further advantages are: Continous adjustment of the cutting width for application of various profiles from 40 - 100 mm . Continous adjustment of the height position for an exact and uniform alignment of the hole positions taken from the lower edge of the trapezoidal corrugated sheet. After piercing, ejector springs ensure a safe return stroke of the hole punches.

The use of the Plug-on Setting Tool facilitates the assembly of Drop-In Anchors significantly. The reduction of assembly time and of the assembly effort enables an economical installation of the anchors.

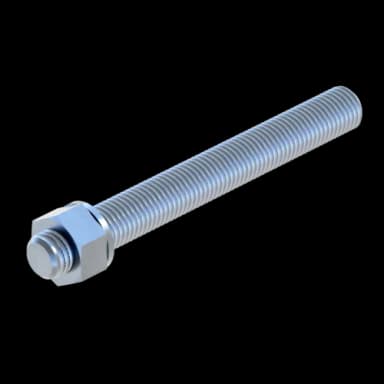

Anchor Rod for pre-installation, to be used with Injection Systems VMU plus, VME plus and VMH. For anchoring in concrete tensile pressure zones or in brickwork. Due to the variable anchoring depth the effective embedment depth can be adjusted to the requested load. Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations (stainless steel version available on request). No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1.

Stainless steel Anchor Rod for pre-installation, to be used with Injection Systems VMU plus, VME plus and VMH. For anchoring in concrete or in brickwork only with VMU plus. Due to the variable anchoring depth the effective embedment depth can be adjusted to the requested load. Suitable for indoor and outdoor use. No special drill required. Small edge and centre distances. Approved for use under seismic action according to the performance categories C1 and C2 (depending on the mortar).

Anchor Rod for push-through and put-before mounting in concrete tensile zones in M&E services and plant construction (for anchoring heavy loads). Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1 and C2 (M10 - M16)
