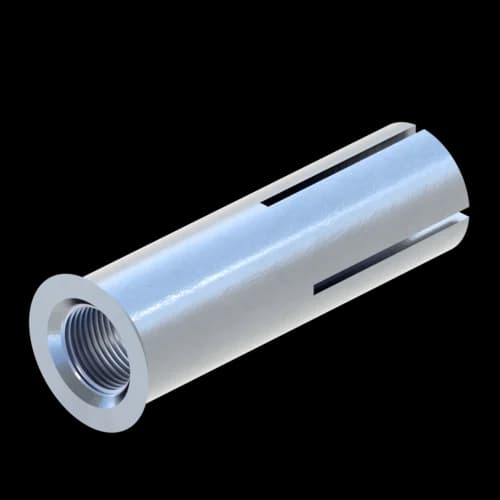

Drop-in Anchor AN ES
Group: 1401
Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete
Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements
Overview of Types
General Information
Drop-In Anchor for single fixing in non-cracked concrete and multiple fixing in cracked concrete. Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. The anchor must only be used for dry interiors. For damp locations and outdoor constructions the stainless steel version is required. No special drill required. Setting tool for distance-controlled forced expansion- Suitable for push-through mounting.
Certification
For the multiple use for non-structural applicatons Sikla approval ETA-10/0258 (M8 - M12), for installation in non-cracked concrete Sikla approval ETA-10/0257, fire protection testing, VdS-conform, FM-Approval ≥ M10.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
For load values, see additional documents.
Type M12x25: Delivery date on request – goods are procured on an order-by-order basis.
Software
This product is available in the following software.

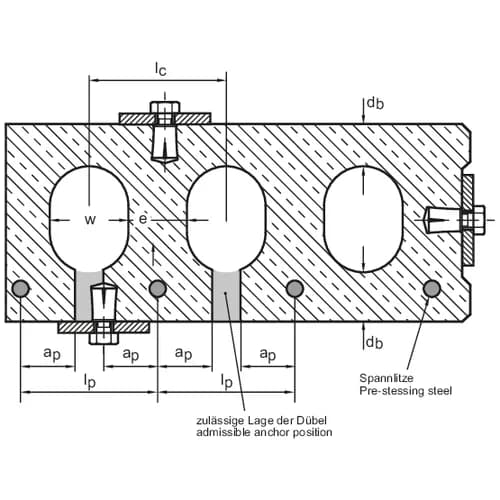

Installation
As expansion tool use the respective Setting Tool for Drop-In Anchor or the Plug-on Setting Tool ASW.

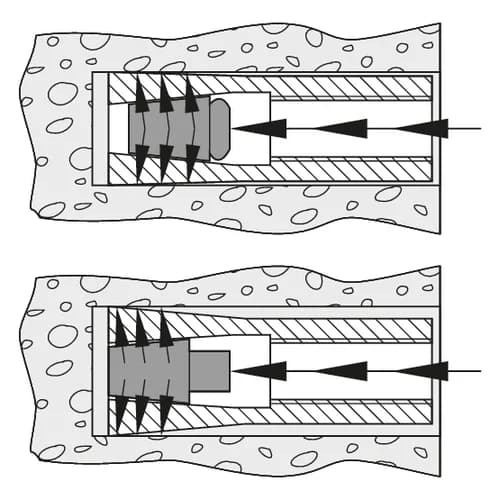

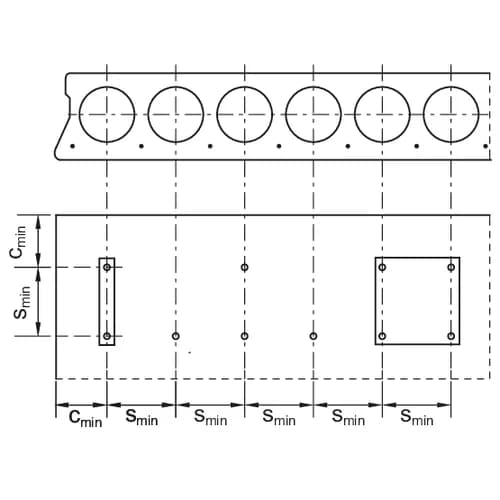

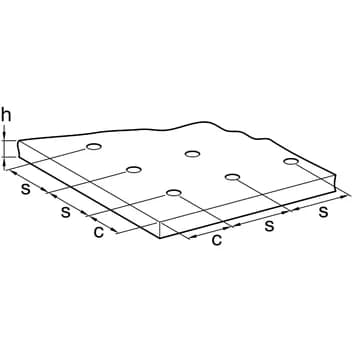

The 'intelligent' expansion cone facilitates the mounting with bore dia. tolerances or varying concrete quality. By the controlled deformation of the cone during installation, the needed edge and centre distances are decreasing considerably.
