Assembly System siMetrix 46

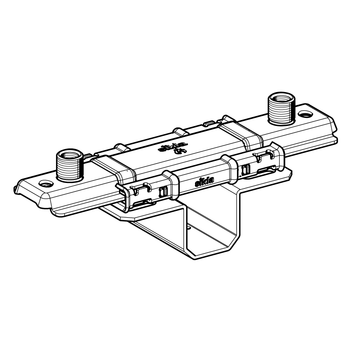

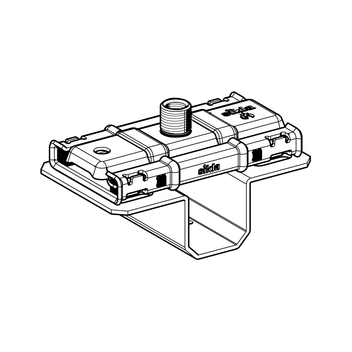

Bi-directional Slide Set KGL 46

Application

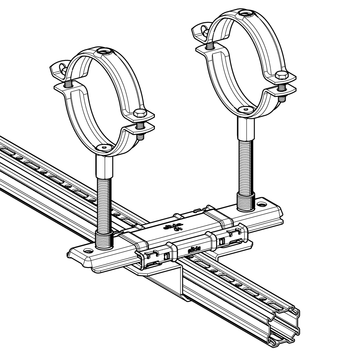

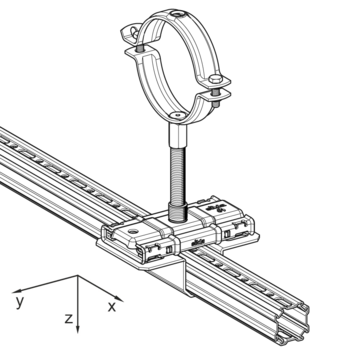

Bi-directional Slide Set for single and double guided brackets on siMetrix Profile PRO 46. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2".

Installation

For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.

Technical Data

Type
Vz,zul
[kN]
- Vz,zul
[kN]
KGL H3G-PL 46 11,04 3,45
KGL H3G2-PL 46 11,04 3,45

Permanent temperature range Slide Set:
130°C
Static friction coefficient µ0:
0,07
Sliding friction coefficient µ:
0,07
Tightening torque siMetrix screws:
15 Nm

Material:
Slide element and retaining plate:
Steel, HCP
Slide bar:
Polyamide (glass-fibre reinforced), MoS2 coated


Type
max. lever arm
[mm]
max. glide path s
[mm]
KGL H3G-PL 46 250 100
KGL H3G2-PL 46 250 140
TypeW
[kg]
Quantity
[pack]
Part
number
KGL H3G-PL 460.6310 807435
KGL H3G2-PL 460.8710 807436
