Pre-assembled connecting angle especially for frames made of Channels MS 27. Type W for connection to wall, floor or ceiling. Quick-locking mechanism for 90° junction of CC-27 system. By pressing on the bolt head the connector automatically locks into the channel, supporting its own weight and retaining its position, enabling easy adjustment. Secure form-locked connection. Serrated channel nut with M8 clamping bolt. Stiff and strong due to high-performance steel and geometric design.

Pre-assembled connecting angle especially for frames made of Channels MS 27. Type W for connection to wall, floor or ceiling. Quick-locking mechanism for 90° junction of CC-27 system. By pressing on the bolt head the connector automatically locks into the channel, supporting its own weight and retaining its position, enabling easy adjustment. Secure form-locked connection. Serrated channel nut with M8 clamping bolt. Stiff and strong due to high-performance steel and geometric design.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

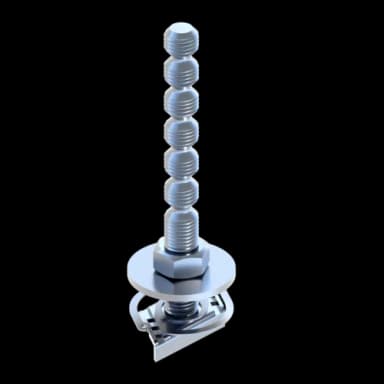

Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27. Time-saving due to a pre-assembled Blockset consisting of 4 individual parts. Easy height adjustment within the channel. Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required. Grooved rod, prevents unintended unscrewing. Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.

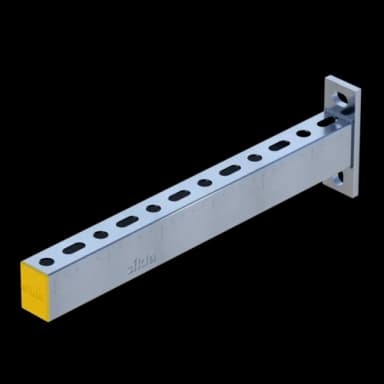

Recommended for single-armed wall suspension or fixing to other building structures.

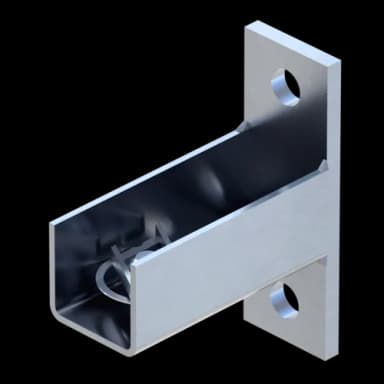

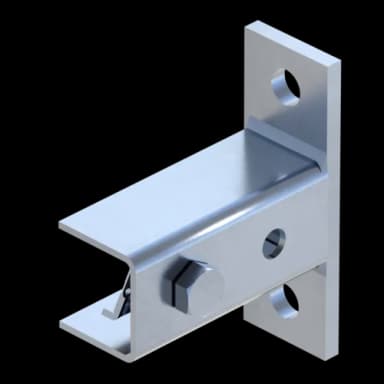

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

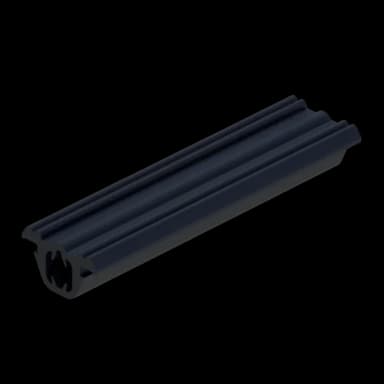

Sound absorption lining for inserting into Sikla Channels MS 27 or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops. All products within the Pressix CC 27 range are compatible with Channel MS 27.

For the simple and professional manufacture of crossbars, wall brackets and support frames on the construction site or for pre-assembly.

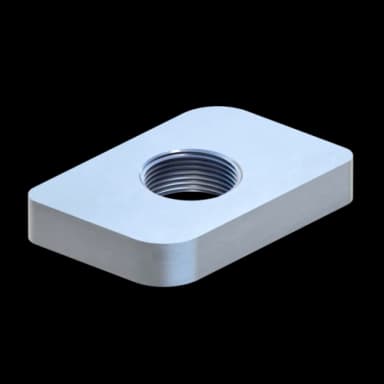

Channel Nuts type 27 are suitable for channels of 27 mm width.

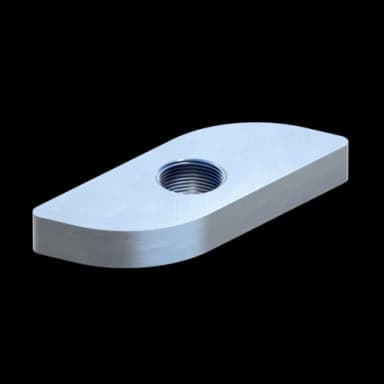

Channel Nuts type 27 are suitable for channels of 27 mm width.

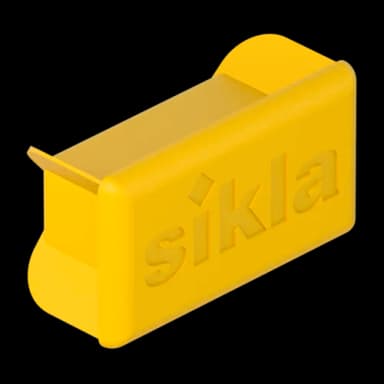

End Cap for clean finish at the end of Sikla Channel MS 27.

Channel Nut 27 for channels in stainless steel with a width of 27 mm.

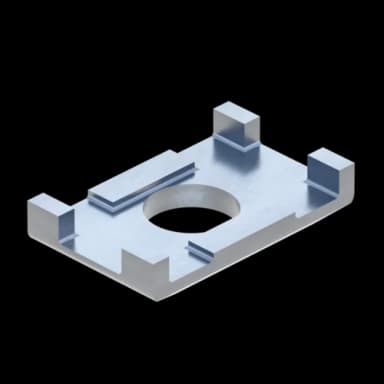

Safety element for Sikla channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposed along the channels, Holding Brackets HK 27 provide additional safety due to embossed teeth, which penetrate the channel. Suitable for Channels MS 27.

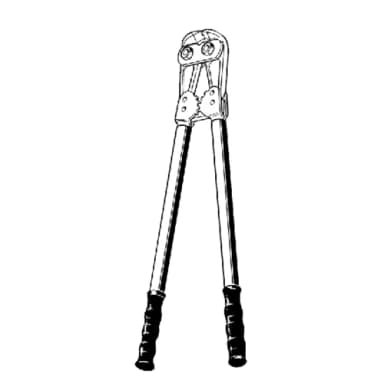

Provides for easy cutting of grooved M8 and M10 Pressix Rods. Sawing and time-consuming chamfering of threads is no longer required; the thread is not damaged. Note: To be used for Pressix Rods exclusively!

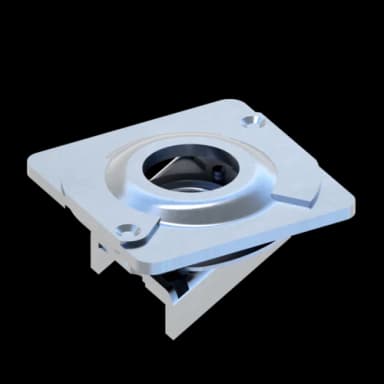

Base element for setting up horizontal and vertical tie rods on site.

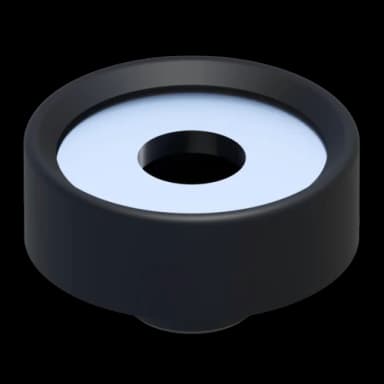

Sound Absorption Unit to be used in combination with Sikla Channels MS 27 in ducting systems (respecting sound proof demands according to DIN 4109). The geometry of this element reliably secures sound absorption between channel and suspension.

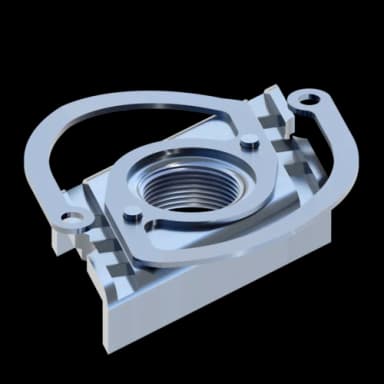

In particular useful for installation in vertical channels or where access is difficult. Further advantages: Can be used in the Sikla Channels MS 27, independent of the channel's height. No getting stuck on bolt heads when sliding in the channel. No appearance of settlement after tightening.

May be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U bolt), be arranged in vertical position or be suspended (grub screws). In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.

Sikla Support Brackets may be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U-bolt), be arranged in vertical position or be suspended (Grub Screws). In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.

Sikla Support Brackets may be used for wall, floor and overhead pipe installation. Depending on the site, pipes may lie on the support bracket (U bolt), be arranged in vertical position or be suspended (grub screws). In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of cross-bars can be increased by fixing them onto Support Brackets.

Sikla Support Brackets may be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U-bolt), be arranged in vertical position or be suspended (Grub Screws). In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.

Sikla Support Brackets may be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U-bolt), be arranged in vertical position or be suspended (Grub Screws). In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.
