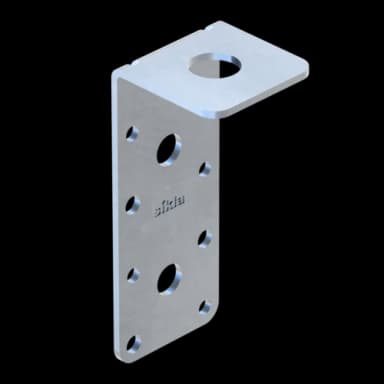

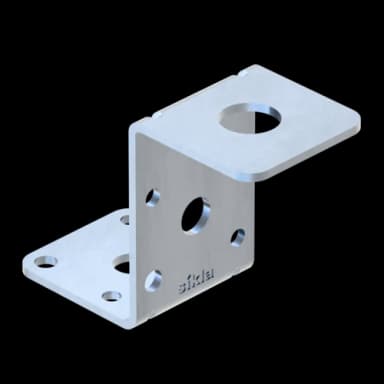

Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.

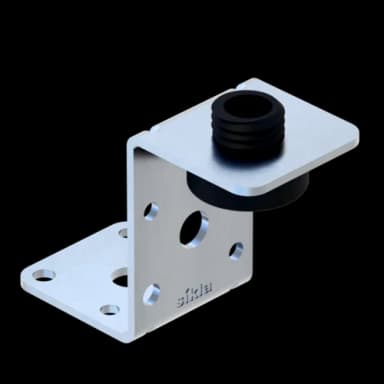

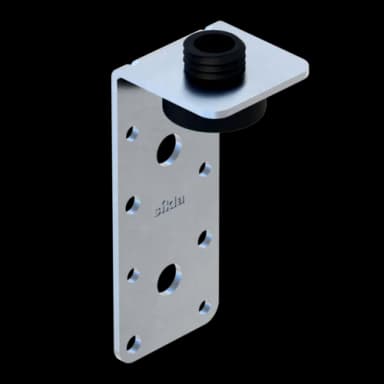

Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types A-SL and A-SZ allow for soundproof installation also according to DIN 4109.

Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types A-SL and A-SZ allow for soundproof installation also according to DIN 4109.

Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.

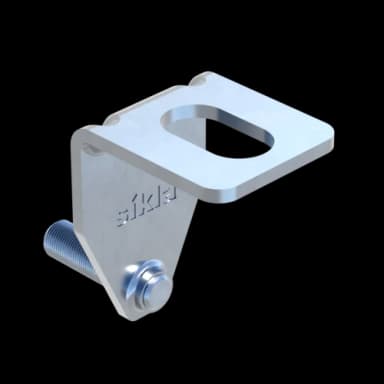

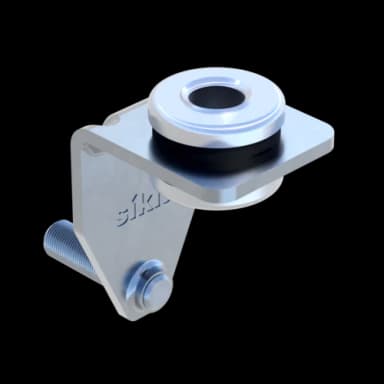

Ducting Angle for a direct installation to the flange of rectangular ventilation ducts. Due to this external connection it's not necessary to penetrate the duct, therefore flow losses do not occur. In addition there are no leakages and flow noises. No disturbing screw tips interfere with cleaning operations. The Ductings Angles LUW F exceed the demands of VDI Standard 6022 (Hygiene requriements for ductings). Type LUW SF is suitable for soundproof duct installations according to DIN 4109. The slot allows adjustment facilities to compensate drill hole differences and construction tolerances.

Ducting Angle for a direct installation to the flange of rectangular ventilation ducts. Due to this external connection it's not necessary to penetrate the duct, therefore flow losses do not occur. In addition there are no leakages and flow noises. No disturbing screw tips interfere with cleaning operations. The Ductings Angles LUW F exceed the demands of VDI Standard 6022 (Hygiene requriements for ductings). Type LUW SF is suitable for soundproof duct installations according to DIN 4109. The slot allows adjustment facilities to compensate drill hole differences and construction tolerances.

Mounting element for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types SL and SZ allow for soundproof installation, also according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound when using versions SL and SZ.

Mounting element for rectangular ducts -even for outdoor areas- installed directly under the ceiling, or for suspended installation when using a threaded rod. For soundproof installation according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound.

Mounting element for rectangular, particularly for vertically running ducts. In combination with Sound Absorber SDE 1 suitable for soundproof fixing of ducts according to DIN 4109.

Mounting element for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types SL and SZ allow for soundproof installation, also according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound when using versions SL and SZ.

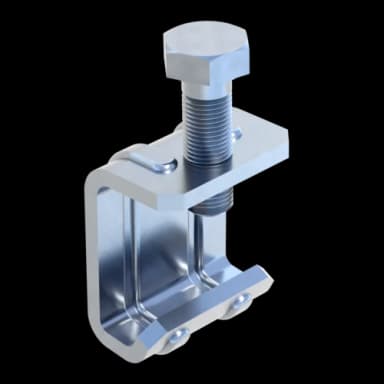

For connecting formed duct parts. When tightening the Bracket, the flanges of the duct parts are pressed against each other. The ducting bracket is suitable for ducts with flange widths of 20 mm, 30 mm and 40 mm.

For quick and safe soundproof mounting of ducts either close to a ceiling, or for suspended installation when using a threaded rod. The bending points are punched, ensuring easy and exact adjustment to the pipe diameter. Suitable if soundproof installation according to DIN 4109 is demanded.

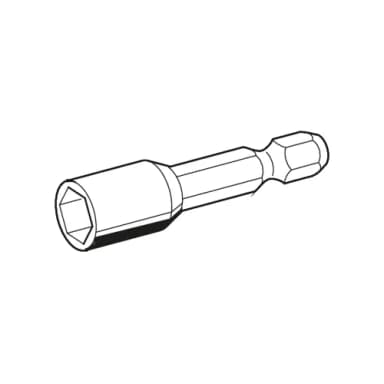

The magnetic tool attachment ensures that drill bits or screws do not fall down while working.

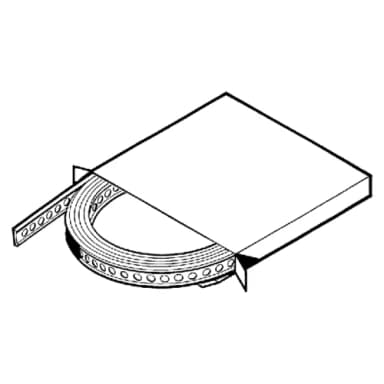

For dimensionless suspension without special requirements. The plastic-coated version is also suitable for copper tubes.
