Product catalogue

Universally applicable sound absorption element for higher loads. Suitable for soundproof installation according to DIN 4109. Especially suitable for sound isolation of constructions made of Channels 41 or electrical equipment, e.g. pumps or ventilators.

The Rubber-Metal Combination Element GMT suppresses vibrations originating from various systems. Such vibrations generated by the system (such as motors, boilers..) are normally transmitted as sound to the environment via rigid building structures. The mounting situation does not affect the efficiency of the Sikla Rubber-Metal Combination Element GMT, this element may also be applied as a horizontal stop buffer.

May be used for ventilation systems and other M&E services, mainly for direct ceiling attachment. Can be combined with other support components such as Ducting Angles, Pipe Clamps, Channels or special structures. May also function as an efficient band hanger when turned by 180°.

Various applicable sound absorption element with M10, M12 or triple thread connection options (also according to DIN 4109). Suitable for overhead, floor and wall mounting purposes in the plant construction.

Universal sound absorption element for heavy loads. Particularly suitable for soundproof installation according to DIN 4109 of single point connections to threaded tubes up to 1' as a base for soundproof fixed points. Can be fixed either directly to building components by means of two M16 heavy duty anchors or to steel structures, or onto Sikla Channels (recommended from size 41/45).

Universal sound absorption element for heavy loads. Particularly suitable for soundproof installation of sound-insulated fixed points of devices in the fields of ventilation and air conditioning. Can be fixed either directly to building components by means of an M16 heavy duty anchor or to steel structures. It is also possible to mount the Sound Absorber onto Sikla Channels (recommended from size 41/41 onwards), or to insulate complete channel structures from the building structure. The element is also suitable as joint fixing for channels on angular ceilings, walls and floors.

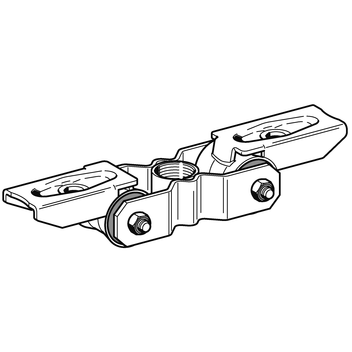

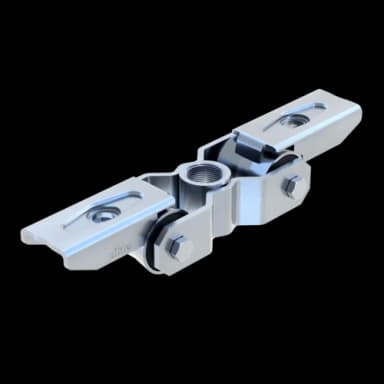

Universal sound absorption element for heavy loads. Particularly suitable for soundproof Installation according to DIN 4109 of single connections to M16 Threaded rods, also on girders or roof structures of any gradient of soundproof Fixed Points in trestle arrangement using 4 SDE 2-UG 16. Suitable for installation of soundproof inclined supports, or onto Sikla Channels (recommended from size 41/41).
