siFramo 80

Pivot Joint GE F - ST F 80

Application

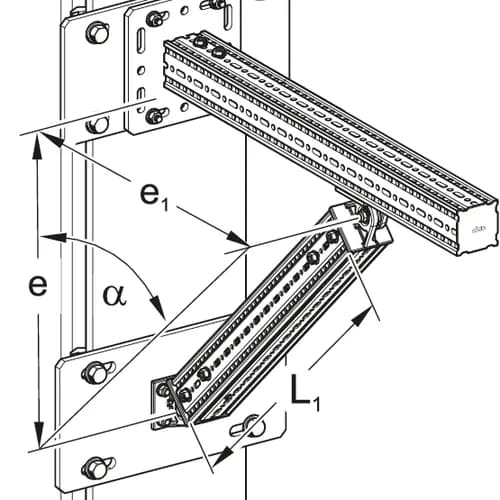

Applicable as a bracing element for single-arm cantilevers supported from primary steelwork or concrete surfaces, also for the knee-brace reinforcing of all siFramo 80 frame constructions. The pivot can be installed with angles from 25° to 155°.

Scope of delivery

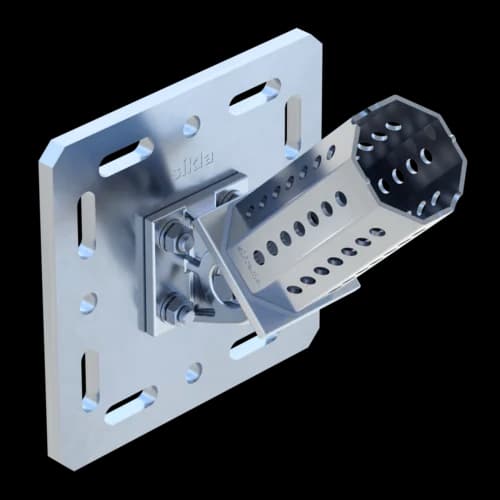

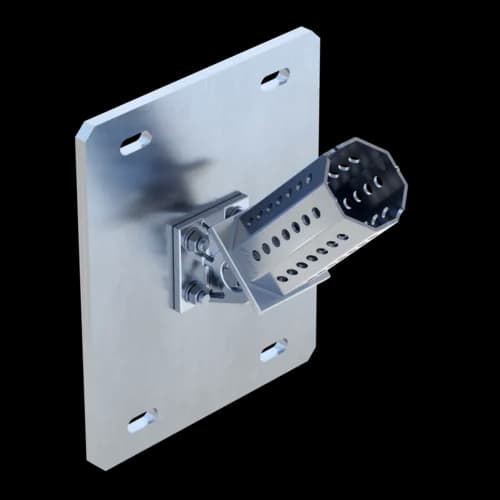

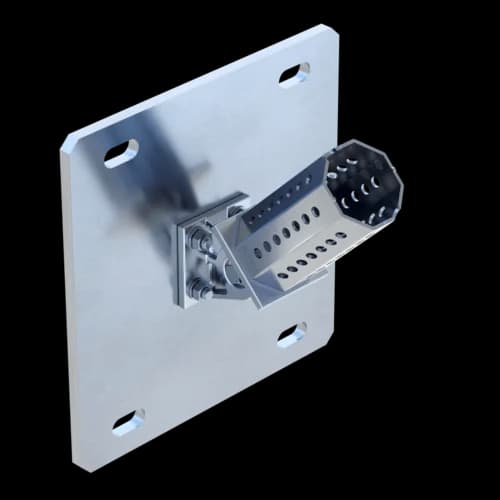

Pivot Joint GE F - ST F 80 with pre-attached base plate

Installation

Attachment of the Joints to steel structure by means of Assembly Set MS 5P M12 S while connecting the base plate. From Type 161/200 on an Assembly Set MS 5P M16 S is used. Another option is to fix the Joint to concrete walls by means of 4 heavy-duty anchors. The support profile TP F 80 plugged onto the octagon is attached by means of 4 Self Forming Screws. The cutting length of the support profile can be determined by the table below-mentioned. After installation at the desired angle the screws have to be tightened with 40 Nm.

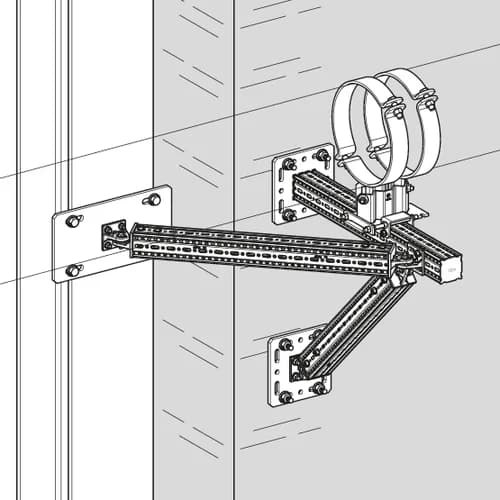

By loosening the screw connection between Joint and Joining Plate it is possible to rotate the Joint by 90° and to use it for a cross member then (see figure 4).

Technical Data

Type
Height H
[mm]
Length L
[mm]
Width B
[mm]
Angle α
GE F 80/120 - 80 140 220 220 25° - 155°
GE F 121/160 - 80 - 1 140 320 260 25° - 155°
GE F 161/200 - 80 - 1 140 320 310 25° - 155°
GE F 201/310 - 80 - 1 140 220 420 25° - 155°

Material:
Steel, HCP

* in stock

TypeW
[kg]
Quantity
[pack]
Part
number
GE F 80/120 - 80 *6.21 115856
GE F 121/160 - 80 - 19.81 115857
GE F 161/200 - 80 - 111.31 115859
GE F 201/310 - 80 - 110.41 115861
