Welding Adapter ASA Q F
Welding plate with intake to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.
Scope of delivery
Mounting Plate with welded on joint.
The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment. The siFramo section must be connected to the Welding Adapter ASA with 12 x Self Forming Screw FLS.

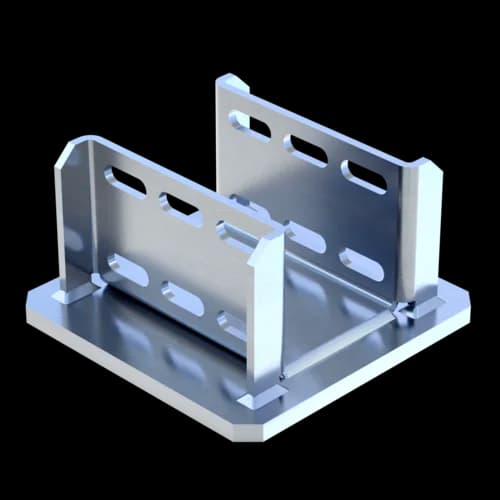

|ASA Q F 80
|ASA Q F 100
