ASA QS F 80
Welding Adapter ASA-QS F 80 HCP
Group: A428
Part number 116396

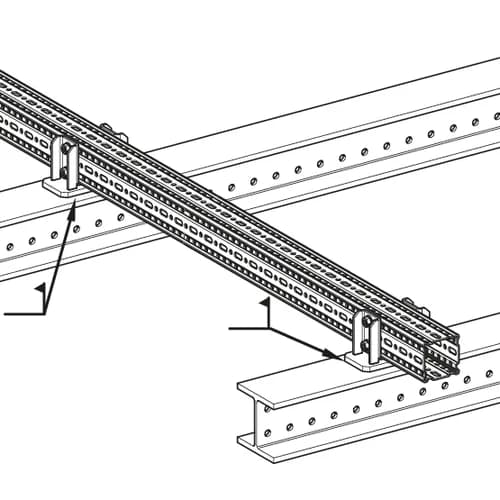

Welding plate for receiving siFramo 80 beam sections
Can be integrated into structural steel design or used on site
Suitable when clamping is not possible and hot works are allowed
Technical Data
B1 | 82 mm |
BP | 170 mm |
HP | 170 mm |
LG | 95 mm |
tP | 10 mm |
Mounting Plate with welded on joint.
Load range
-VX,perm. | 11,70 kN |
VX,perm. | 11,70 kN |
-VY,perm. | 48,50 kN |
VY,perm. | 48,50 kN |
-VZ,perm. | 58,40 kN |
VZ,perm. | 58,40 kN |
-MY,perm. | 1,3 kNm |
MY,perm. | 1,30 kNm |
-MZ,perm. | 2,3 kNm |
MZ,perm. | 2,3 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment.
Type ASA QS:The siFramo section must be connected with 4 x Self Forming Screw FLS.
Type ASA Q: The siFramo section must be connected with 12 x Self Forming Screw FLS.
