Stainless Steel Products

Slide Set GS 2G ss

Application

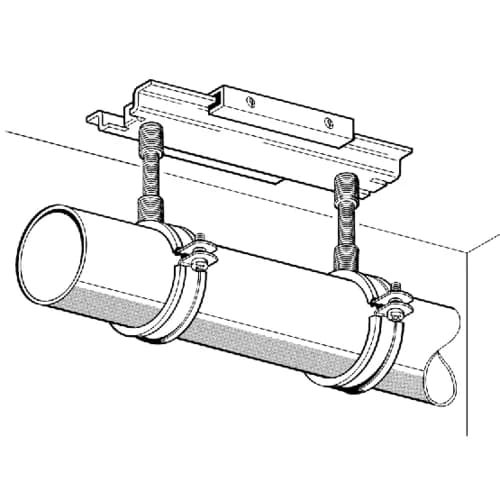

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R1" using adapters (see Adapters AD f/f ss)
Sound absorption by means of slide rails of glass fibre reinforced PA.

Technical Data

Permissible load for ceiling mounting:
0.6 kN
Permissible load for floor mounting:
1.2 kN
Lever arm Lmax :
150 mm
Max. sliding distance Type 2G:
85 mm
Max. sliding distance Type 2G2:
140 mm
Temperature range:
130°C (permanent exposure)
Static friction coefficient µ0 :
0.18
Sliding friction coefficient µ:
0.14

Material:
Metal components and Slide rails:
Stainless steel A4
TypeW
[kg]
Quantity
[pack]
Part
number

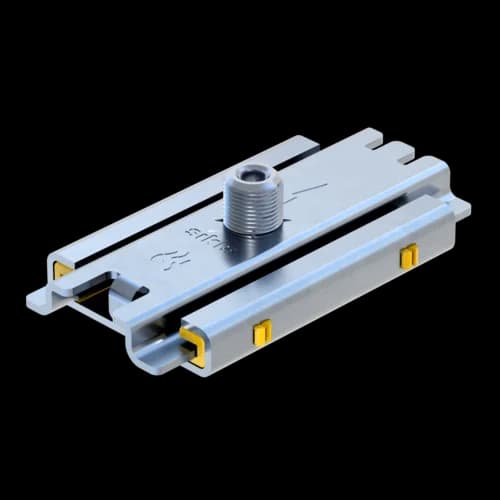

2G 0.3725 170161

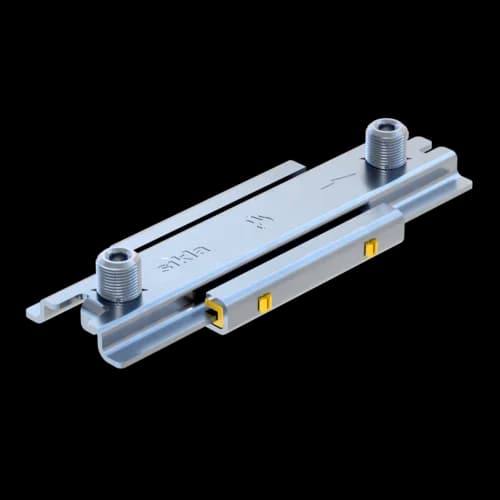

2G2 0.4925 170189
