Stainless Steel Products

Mounting Plate GPL ss

Application

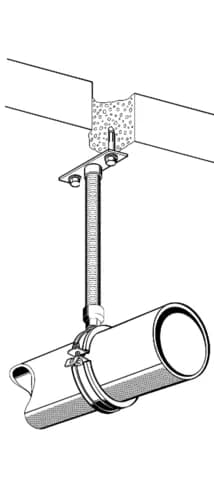

For wall, ceiling and floor installation for mounting elements in M&E services.

Technical Data

The nominal loads mentioned shouldn't be exceeded. Permissible anchor values may restrict the application.

Version / Type
Tension
[kN]
Perm. bending moment*
[Nm]
Max. lever arm
[mm]
Welding
method
Stabil M8 3.0 8.8 150 R
Stabil M10 3.0 17.2 200 R

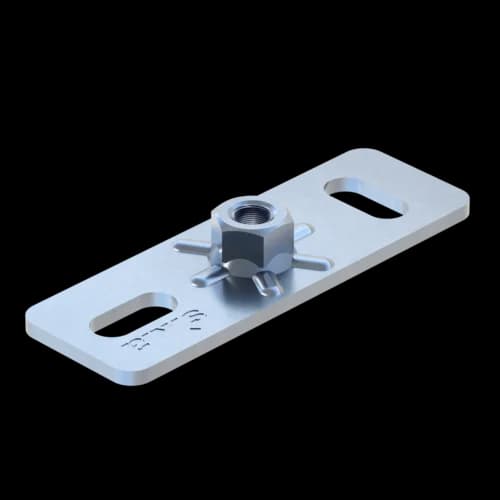

Stabil M12 3.0 29.6 300 R

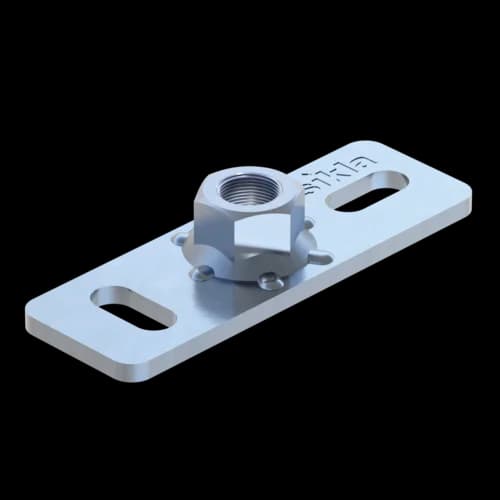

Stabil M16 4.5 70.3 300 M

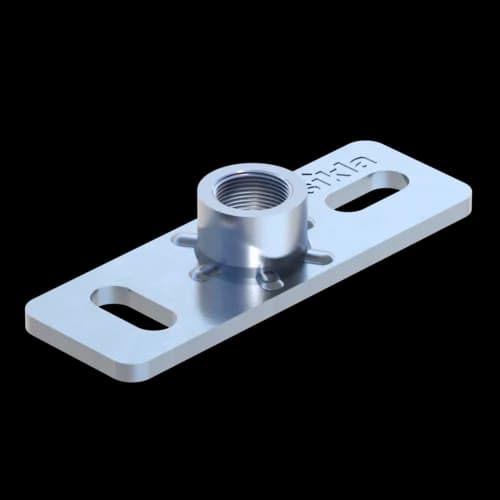

Stabil R 1/2" 4.5 95.0 350 M
Stabil R 3/4" 6.2 180.0 450 M

R = resistance welding
M = slot welding

*
Limitation caused by the Mounting Plate or the loading capacity of the grub screw or of the threaded tube.
σperm ≤ 160 N/mm2 fperm < 5 mm

Material:
Stainless steel A4
TypeDimension
L x W x Th
[mm]
Elongated hole
d x a
[mm]
Centre
distance l
[mm]
W
[kg]
Quantity
[pack]
Part
number
Stabil M8120 x 40 x 411 x 25800.1450 107608
Stabil M10120 x 40 x 411 x 25800.1450 107617
Stabil M12120 x 40 x 411 x 25800.1450 107626
Stabil M16120 x 40 x 411 x 25800.1650 107635
Stabil R 1/2"120 x 40 x 411 x 25800.1650 107644
Stabil R 3/4"120 x 40 x 411 x 25800.1750 107653
