Stainless Steel Products

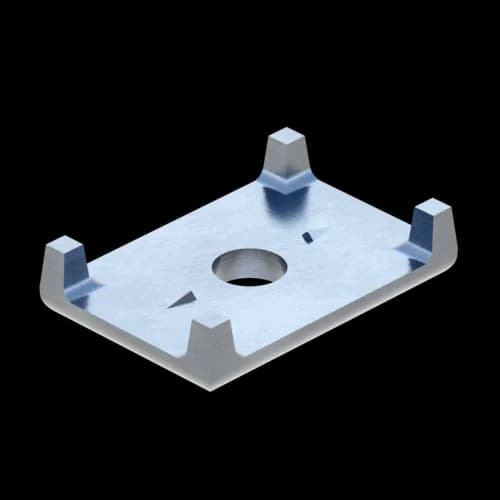

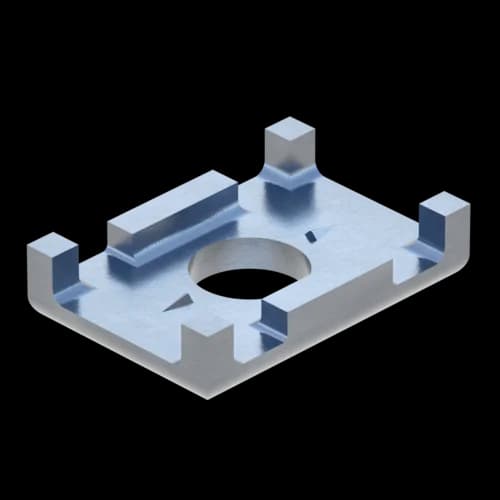

Holding Bracket HK ss

Application

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution.

Suitable for single and double channels.

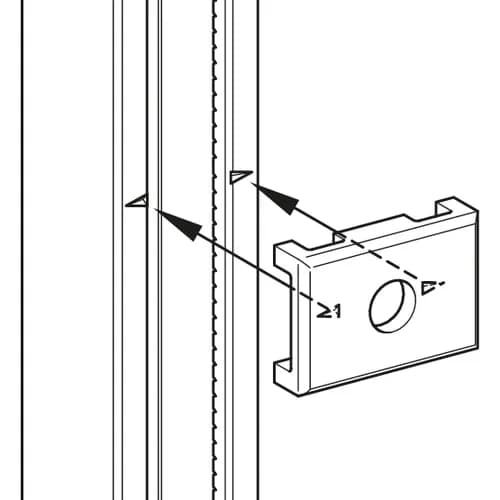

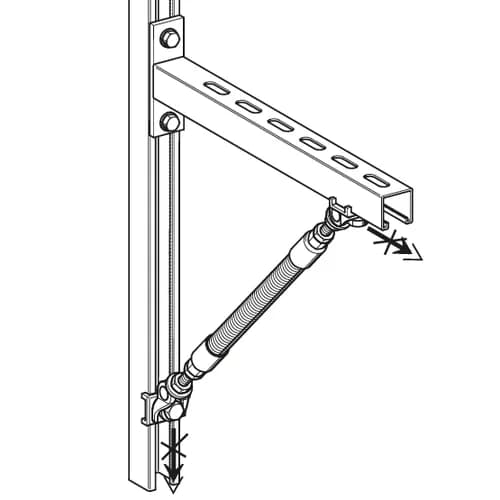

When loads are imposed along the channels, Holding Brackets 41 provide for additional safety due to embossed teeth, which penetrate the channel.

Technical Data

Material:
Stainless steel A4
TypeSuitable for Sikla
channels of width [mm]
Bore
[mm]
W
[kg]
Quantity
[pack]
Part
number
41/1041110.0750 178634
41/1241130.0850 178643
41/1641170.0750 178652
