Stainless Steel Products

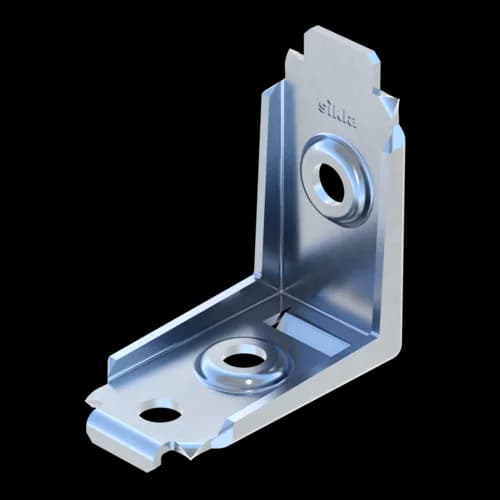

Fixing Bracket MW 90° W Stabil ss

Application

Fixing Bracket suitable for frame construction and cross bars composed of channels, as well as for connection to floor, wall and ceiling.
Thanks to the high stiffness resulting from the shape also suitable as Support Bracket for projecting racks.
When used as support for cross bars, their load capacity increases.

Technical Data

Nominal load:
Fshear = 2.5 kN per bracket
Tightening torque:
40 Nm
Material:
Stainless steel A4
TypeW
[kg]
Quantity
[pack]
Part
number
90° W Stabil0.1225 191702
