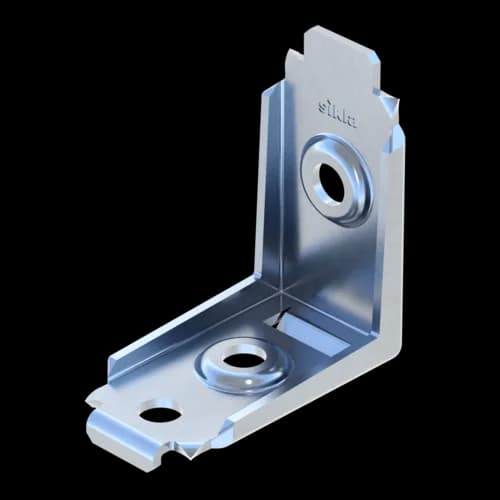

Fixing Bracket MW 90° W ST A4
Group: 1726
Part number 191702
Fixing Bracket suitable for frame construction and cross bars composed of channels
Also suitable for cantilevered brackets as Support Bracket
Technical Data
Load range
VZ,perm. | 2,50 kN |
Note: Working load per bracket.
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Tightening torque: 40 Nm
