Stainless Steel Products

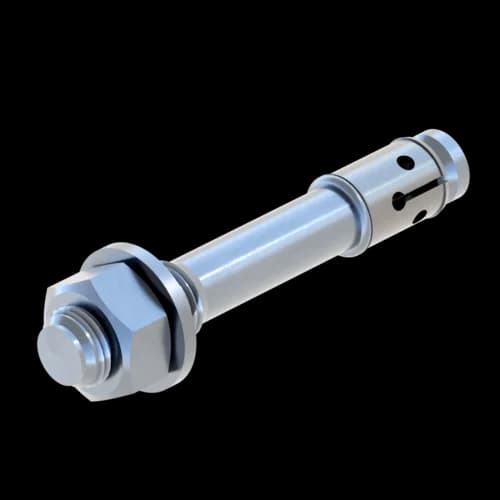

Bolt Anchor AN BZ plus A4

Application

Anchor for push-through and mounting in M&E services and plant construction in concrete tensile zones. This anchor combines high admissible loads with little edge and centre distances.
Suitable for attaching pipelines, channels, brackets, etc. in closed room and outside section.

  • No special drill required. Bore dia. = thread size
  • Simple and quick mounting due to its push-through concept
  • Drive-in hammer zone for preventing any thread damage

Scope of delivery

Supplied with washer and hexagon nut.

Installation

1.
Drill bore hole according to the minimum bore hole depth perpendicularly to the surface.
2.
Remove dirt from the hole.
3.
Drive the anchor into concrete up to its embedment mark.
4.
Immediately resilient after tightening with the torque wrench Tinst indicated in the table below. Advices of the mounting instruction are to be respected!

Technical Data

Standard anchoring depth:

Anchor size
M8
M10
M12
M16
Perm. load 1) tension C20/25 2) [kN] 2.4 4.3 7.6 11.9
C25/30 2) [kN] 2.6 4.7 8.3 13.0
C30/37 2) [kN] 2.9 5.2 9.3 14.5
C40/50 2) [kN] 3.4 6.1 10.8 16.8
C50/60 2) [kN] 3.7 6.6 11.8 18.4
Perm. load 1) oplique C20/25 2) [kN] 7.4 11.4 17.1 31.4
Perm. bending moment 1) [Nm] 14.9 29.7 52.6 114.3
Min. thickness of component hmin ≥ [mm] 100 120 140 160

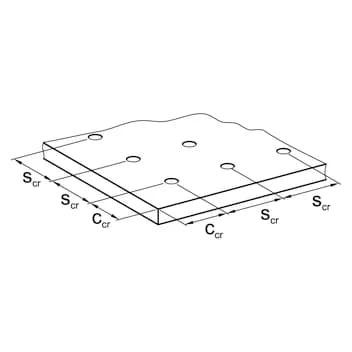

(3 hef ) Charact. centre distance scr [mm] 138 180 210 255
(1,5 hef ) Charact. edge distance ccr [mm] 69 90 105 127.5
Min. centre distance s at/edge distance c ≥ [mm] 40/70 50/75 60/100 60/100
Min. edge distance c at/centre distance s ≥ [mm] 40/80 55/90 60/140 60/180
Effective anchoring depth hef [mm] 46 60 70 85
Nominal diameter of drill d0 [mm] 8 10 12 16
Depth of bore hole h1 ≥ [mm] 60 75 90 110
Anchoring torque Tinst [Nm] 20 35 50 110
zul. Perm. load tenison 3) for fire exposure
Perm. load R30 perm. F [kN] 1.3 2.3 4.0 6.3
Perm. load R60 perm. F [kN] 1.3 2.3 4.0 6.3
Perm. load R90 perm. F [kN] 1.3 2.3 4.0 6.3
Perm. load R120 perm. F [kN] 1.0 1.8 3.2 5.0

1) Loads for single anchors without influence of edge distances
2) Cracked concrete (option 1)
3) Consider edge and centre distances under fire exposure accord. to approval

Reduced anchoring depth:

Anchor size
M8
M10
M12
M16
Perm. load 1) tension C20/25 2) [kN] 2.4 3.6 6.1 9.0
C25/30 2) [kN] 2.6 3.9 6.6 9.8
C30/37 2) [kN] 2.9 4.3 7.4 10.9
C40/50 2) [kN] 3.4 5.1 8.6 12.7
C50/60 2) [kN] 3.7 5.5 9.4 13.9
Perm. load 1) oplique ≥ C20/25 2) [kN] 7.4 10.4 14.5 21.6
Perm. bending moment 1) [Nm] 14.9 29.7 52.6 114.3
Min. thickness of component hmin ≥ [mm] 80 80 100 140
(3 hef ) Charact. centre distance scr [mm] 105 120 150 195
(1,5 hef ) Charact. edge distance ccr [mm] 52.5 60 75 97.5
Effective anchoring depth hef [mm] 35 40 50 65
Nominal diameter of drill d0 [mm] 8 10 12 16
Depth of bore hole h1 ≥ [mm] 49 55 70 90
Anchoring torque Tinst [Nm] 20 35 50 110

1) Loads for single anchors without influence of edge distances
2) Cracked concrete (option 1)

The safety factor accord. to ETAG is respected. Values of the mentioned approval are valid and could be seen in the latest issue under www.sikla.com/service/downloads.

Material:
Stainless steel A4

Approvals / Compliance

ETA Approval number: ETA-10/0259
FM-Approval for M10, M12, M16 only for Standard anchoring depth
VdS compliant for all sizes
Shock approval issued by the Federal Office for Civil Defence, Bern (Switzerland)




The types marked * are not part of the Seismic-Approval.

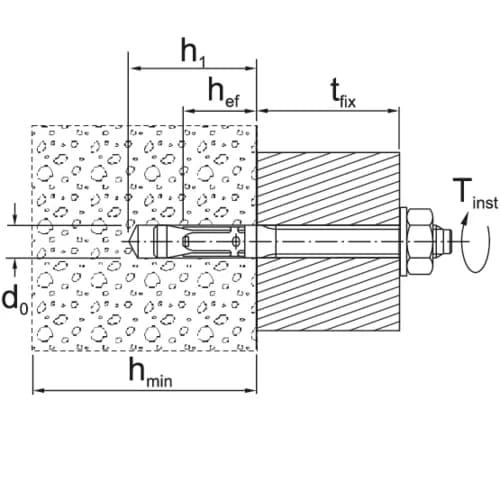

tfix = Max. effective length [mm]
