Pressix CC 41 - Assembly System

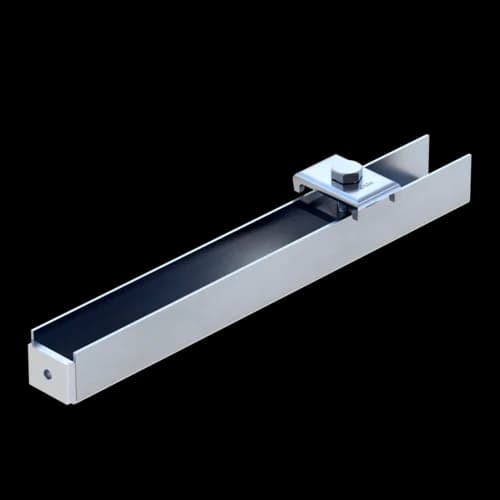

Channel Extension ST 41

Application

Highly variable extension piece for channels and channel constructions.

  • Continuously variable from 0 up to 200 mm, simple adjustment, especially for elevated constructions.
  • Ideal for the laying of individual or several pipelines with obligatory declines and for compensation of large tolerances of the building apart from the plans.
  • In combination with Sikla Cantilever Brackets 41/41 continuously variable supports up to 1.2 m height are possible.

Suitable for all Sikla Channels MS 41 (height ≥ 41 mm).

Scope of delivery

Complete component with pre-assembled Holding Bracket.

Technical Data

Max. perm. load
Fperm Advance for torque 40 Nm = 1.5 kN

Material
Steel, electro-galvanised
TypeThread
connection
W
[kg]
Quantity
[pack]
Part
number
ST 41M100.6825 189740
