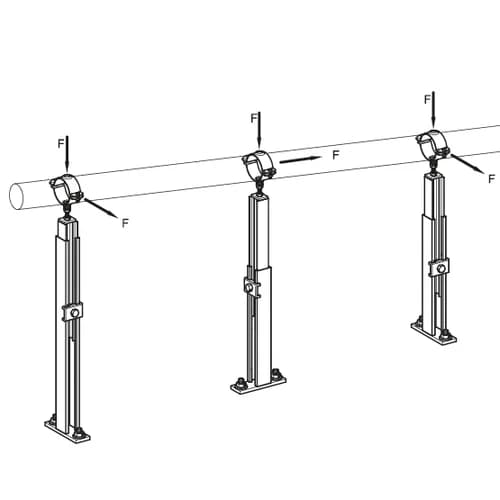

ST_41_10252_AW01.eps

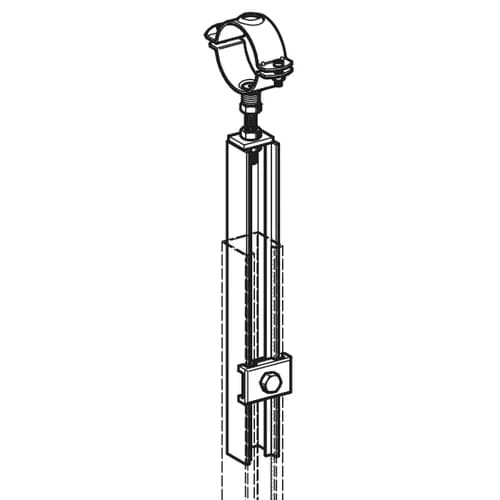

ST_41_10252_AW02.eps

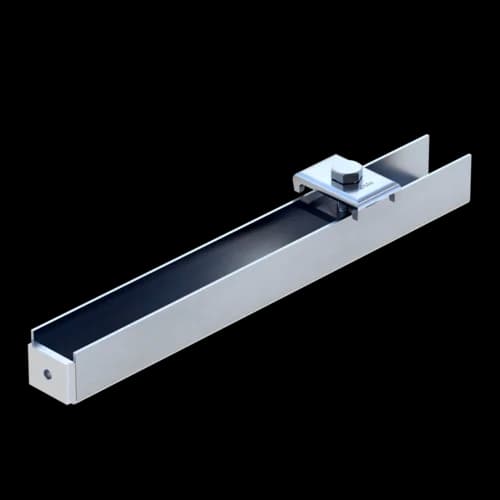

Channel Extension ST 41

Group: 1356

Part number 189740

Highly variable extension piece for channels and channel constructions

Continuously variable from 0–200 mm for easy adjustment, especially for elevated installations

Technical Data
Installation

Technical Data

Complete component with pre-assembled Holding Bracket.

Load range

-V_Z,perm.	1,50 kN
V_Z,perm.	1,50 kN

Load only achievable if the tightening torque of 40 Nm is observed.

Technical specifications

Material base body	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Certification

Installation

Tightening torque: 40 Nm
