High Corrosion Protected Products

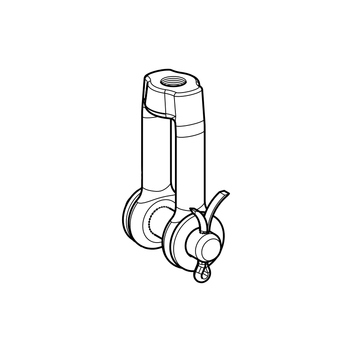

Threaded Clevis GWB HCP

Application

Threaded Clevis for construction of bracings and wind bracings e.g. in the system siFramo as tie rod to transfer loads/influences.

Installation

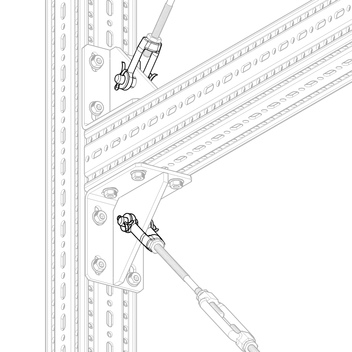

The connection to the Threaded Clevis is made on one side with the tie rod or threaded rod and on the other side with the Corner Bracket WD or an eye screw.

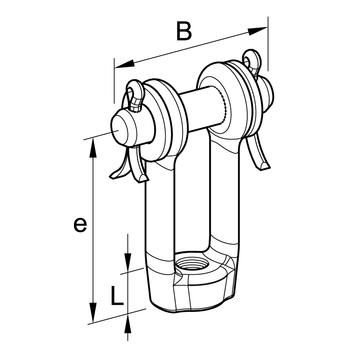

Technical Data

Type
max. perm. tensile load
[kN]
e
[mm]
L
[mm]
B
[mm]
M10 13.6 52.5 10 40
M12 21.4 70.5 12 50
M16 45.3 80 16 60

Material:
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
GWB M100.110 113053
GWB M120.210 113054
GWB M160.510 113055
