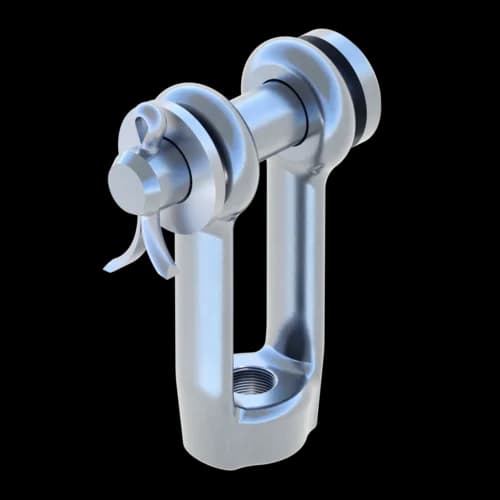

Threaded Clevis GWB M16 HCP

Group: 1878

Part number 113055

Threaded Clevis for constructing bracings and wind bracings

Used in systems like siFramo as a tie rod to transfer loads and forces

Technical Data
Installation

Technical Data

Load range

-V_Z,perm.

45,30 kN

Technical specifications

Material base body	steel
Surface	HCP
Corossion class	C4

Certification

Installation

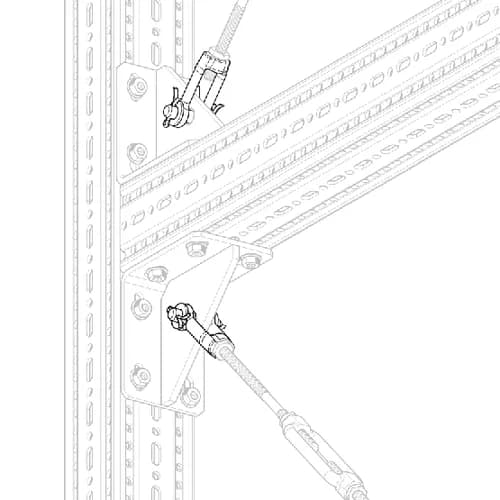

The connection to the Threaded Clevis is made on one side with the tie rod or threaded rod and on the other side with the Corner Bracket WD or an eye screw.
