Application

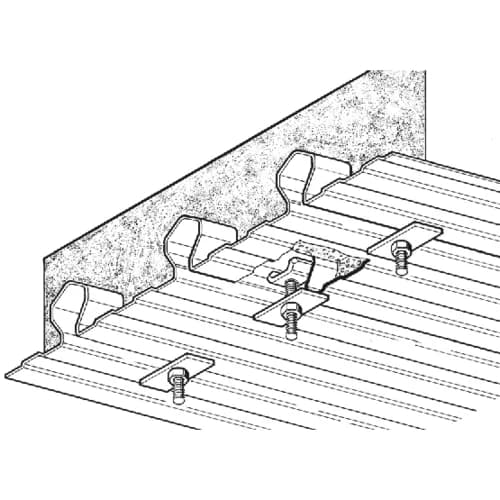

Developed for COFRASTA 40 composite ceilings.
May be used for single or crossbar mounting solutions.

Type C40/0 is mainly used in ventilation systems. In such case, the threaded rods are to be fixed to the system on site. When mounting, make sure that the threaded rods are screwed in sufficiently and retained well, thus preventing any accidental unscrewing.

Scope of delivery

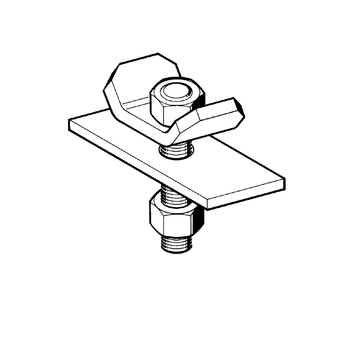

Types C 40/60/M10 and C 40/100/M10 are completely pre-assembled, the grub screw is retained and cannot fall out.

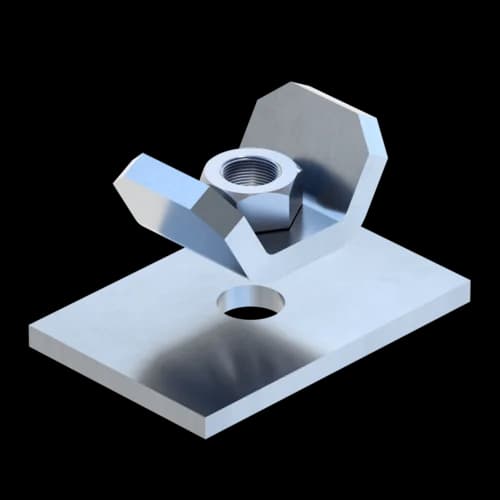

Types C 40/0/M8 and C 40/0/M10: Special washer (rectangular) is included in loose form; without grub screw. With riveted hexagon nut.

Technical Data

Max. working load: 2 kN

When using crossbars or mounting plates, the working load may be increased on the basis of the number of clamps used for the overall structure. The carrying capacity of the ceiling may restrict the application. Distance of profile beads: 150 mm

Material:
Steel, electro-galvanised
TypeAvailable length
of thread [mm]
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
C 40/0/M8variabelM80.13100 146575
C 40/0/M10variabelM100.14100 146478
C 40/60/M1030M100.17100 146487
C 40/100/M1070M100.18100 146496
