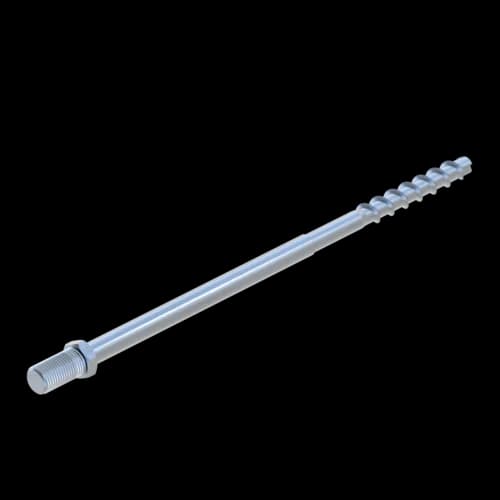

Screwbolt TSM-ST
Application
Suitable for quick and safe fixation of Sikla Channels and pipings to concrete ceilings or walls. To be applied in dry rooms.
- Easy installation via self-cutting action of screwbolt threads into concrete
- Small edge and axial distances to adjacent fixings, due to low expansion pressure when installed
- Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline)
- Flexible use for high or standard load performances due to 2 anchoring depths
- For single fixings it is possible to additionally seal the drill hole with a special injecton resin against water ingress, prior to the fixing being installed and before the injection resin sets
- Fixings in isolated ceilings can be realised with the long versions of the TSM-ST
Installation
Screw in the bolt screw in pre-drilled pilot hole. The special thread guarantees a mechanical form lock with the base material. Fine adjustment of depth is possible if the TSM-IM screw is initially installed too deep.
Technical Data
Single fixing:
Extract from application conditions of ETA-16/0655
Admissible loads not affected by centre and edge distances.
Total safety factor respected according ETAG 001 ( YM YF ).
| Anchoring depth 40 mm | Anchoring depth 55 mm | |
|---|---|---|
| Drive | SW10 | SW10 |
| Connection thread | M8 x 16 | M8 x 16 |
| Nominal diameter of drill d0 [mm] | 6 | 6 |
| Depth of bore hole h1 [mm] | 45 | 60 |
| Perm. tensile load cracked conrete | ||
| C20/25 [kN] | 1.0 | 1.9 |
| C25/30 [kN] | 1.0 | 2.1 |
| C30/37 [kN] | 1.2 | 2.3 |
| C40/50 [kN] | 1.3 | 2.7 |
| C50/60 [kN] | 1.5 | 3.0 |
| Perm. tensile load non-cracked concrete | ||
| C20/25 [kN] | 1.9 | 4.3 |
| C25/30 [kN] | 2.1 | 4.7 |
| C30/37 [kN] | 2.3 | 5.2 |
| C40/50 [kN] | 2.7 | 6.1 |
| C50/60 [kN] | 3.0 | 6.6 |
| Min. thickness of component hmin [mm] | 100 | 100 |
| Charact. centre distance scr,N | 93 | 132 |
| Charact. edge distance ccr,N | 46.5 | 66 |
| Min. centre distance smin [mm] | 40 | 40 |
| Min. edge distance cmin [mm] | 40 | 40 |
| Clearance hole in component ≤ [mm] | 8 | 8 |
| Perm. bending moment Mzul [Nm] | 5.7 | 5.7 |
| Recommended max. torque Tinst [Nm] | 10 | 10 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
| Anchoring depth 40 mm | Anchoring depth 55 mm | |
|---|---|---|
| Perm. tensile load R30 perm. F [kN] | 0.5 | 0.9 |
| Perm. tensile load R60 perm. F [kN] | 0.5 | 0.8 |
| Perm. tensile load R90 perm. F [kN] | 0.5 | 0.6 |
| Perm. tensile load R120 perm. F [kN] | 0.4 | 0.4 |
| Charact. centre distance scr,fi | 124 | 176 |
| Charact. edge distance ccr,fi | 62 | 88 |
Multiple fixing:
Extract from application conditions of ETA-16/0656
For multiple mounting solutions of non-load-bearing systems acc. ETAG 001, part 6.
Safety factor acc. ETAG 001 is included ( YM YF ).
The perm. loads per fixing point for the respective countries are regulated in ETAG 001, part 6.
| Anchoring depth 35 mm | Anchoring depth 55 mm | |
|---|---|---|
| Drive | SW10 | SW10 |
| Nominal diameter of drill d0 [mm] | 6 | 6 |
| Depth of bore hole h1 [mm] | 40 | 60 |
| Perm. tensile load in cracked concrete | ||
| C20/25 [kN] | 0.6 | 3.6 |
| C25/30 [kN] | 0.7 | 3.9 |
| C30/37 [kN] | 0.7 | 4.3 |
| C40/50 [kN] | 0.8 | 5.1 |
| C50/60 [kN] | 0.9 | 5.5 |
| Perm. tensile load in non-cracked concrete | ||
| C20/25 [kN] | 0.6 | 3.6 |
| C25/30 [kN] | 0.7 | 3.9 |
| C30/37 [kN] | 0.7 | 4.3 |
| C40/50 [kN] | 0.8 | 5.1 |
| C50/60 [kN] | 0.9 | 5.5 |
| Min. thickness of component hmin [mm] | 80 | 100 |
| Charact. centre distance scr,N | 81 | 132 |
| Charact. edge distance ccr,N | 40.5 | 66 |
| Min. centre distance smin [mm] | 35 | 40 |
| Min. edge distance cmin [mm] | 35 | 40 |
| Clearance hole in component ≤ [mm] | 8 | 8 |
| Recommended max. torque Tinst [Nm] | 10 | 10 |
Perm. loads under stress of fire in cracked/non-cracked concrete C20/25 to C50/60
| Anchoring depth 35 mm | Anchoring depth 55 mm | |
|---|---|---|
| Perm. tensile load R30 perm. F [kN] | 0.38 | 0.9 |
| Perm. tensile load R60 perm. F [kN] | 0.38 | 0.8 |
| Perm. tensile load R90 perm. F [kN] | 0.38 | 0.6 |
| Perm. tensile load R120 perm. F [kN] | 0.30 | 0.4 |
| Charact. centre distance scr,N | 108 | 176 |
| Charact. edge distance ccr,N | 54 | 88 |
Prestressed concrete hollow plate ceilings C30/37 to C50/60
| Anchoring depth hnom [mm] | ≥ 35 | ||
| Nominal diameter of drill d0 [mm] | 6 | ||
| Depth of bore hole h1 [mm] | 40 | ||
| Recommended max. torque Tinst [Nm] | 10 | ||
| Level size db [mm] | ≥ 25 | ≥ 30 | ≥ 35 |
| Perm. tensile load [kN] | 0.4 | 0.8 | 1.2 |
| Min. centre distance smin [mm] | 100 | 100 | 100 |
| Min. edge distance cmin [mm] | 100 | 100 | 100 |
For calculation the whole approval is to be respected.
| Material: | Steel, electro-galvanised |
Approvals / Compliance
Approval ETA-16/0655 and ETA-16/0656
Screwbolt TSM - ETA 16/0655 PDF | 1.8 MB Screwbolt TSM - ETA 16/0656 PDF | 1.8 MB Screwbolt TSM DoP No. SIKLA 710 Single use PDF | 803.1 KB Screwbolt TSM DoP No. Sikla 721 Multiple use PDF | 921.6 KB
* Only to be used as multiple fixing for non-load-bearing systems in concrete and prestressed concrete hollow plate ceilings.
