Fixings and Fastenings

Injection System VME plus - Resin


The Sikla injection system VME plus is a universal resin injection system for anchoring into coated concrete surfaces in LAU systems (exclusive use in existing facilities in connection with WHG surfaces with "StoCretec WHG System 2"). The Resin VMU-A is used for anchoring in WHG surfaces. It can also be used for cracked and non-cracked concrete. To be used with a Resin Anchor Rod VMU-A or a standard threaded rod with proof of strength (approval certificate 3.1).
The slow hardening of the injection resin enables a long processing time. The dispenser is used to press the mortar components through the Mixing Nozzle into the drill hole. The injection adhesive cures and gives a secure fastening to the base material. The VME plus does not shrink during curing, resulting in a very tight seal.
The VME plus is approved for use under seismic action according to the performance categories C1 and C2.

Scope of delivery

One cartridge is delivered with one Mixing Nozzle ANT VM-X HP.


Drill hole and clean with dust removal pump.
For several drills, first prepare the drill holes to avoid interruptions while injecting the mortar.
Inject the adhesive.
Immediately insert (screw in with spiral rotation) the Resin Anchor Rod.

Opened cartridges can be re-used with a new Mixing Nozzle.

Technical Data

Epoxy resin mortar, styrene-free

Approvals / Conformity

Approval ETA 19/0483
VdS-compliant for all sizes

* Delivery date on request - goods are procured on an order-related basis.

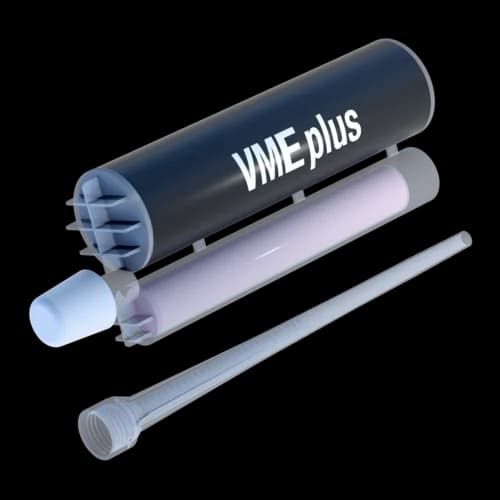

VME plus 440-M *440 ml0.781 407260
Mixing Nozzle ANT VM-X HP0.011 804293
