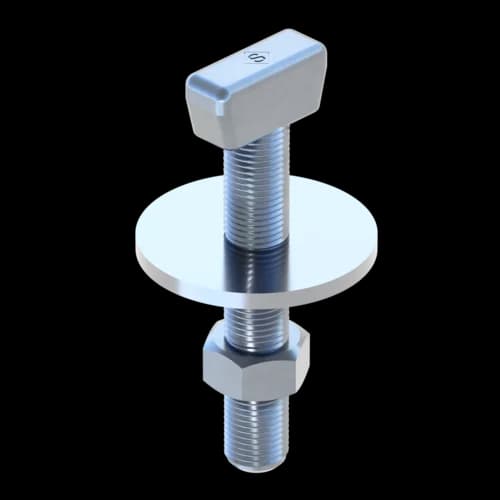

Wedge Bolt KB M 8 X 42

Group: 1312

Part number 138042

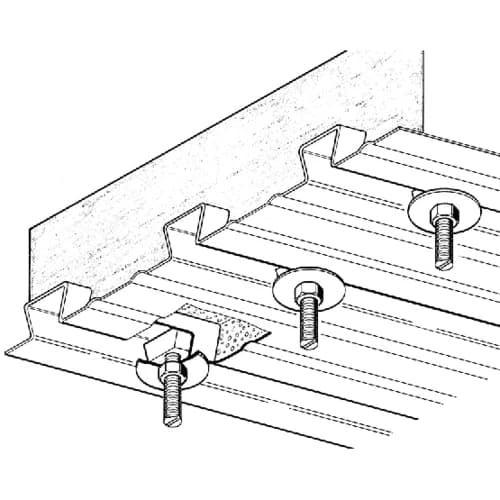

Developed for HOLORIB composite ceilings

Suitable for single or multi-point mounting solutions for crossbars or mounting plates

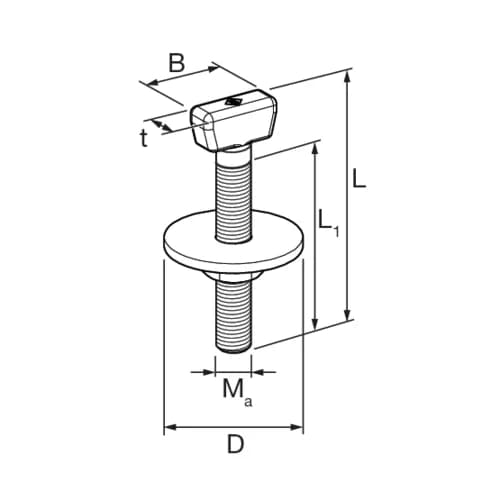

Technical Data

Technical Data

B	25 mm
D	40 mm
L	58 mm
L₁	42 mm
M_a	M8
t	10 mm

Pre-assembled with washer and nut.

Load range

-V_Z,perm.

2,20 kN

Load value applies to ceiling type 51/150.
When using crossbars or mounting plates, the individual load values as indicated in the table may be multiplied on the basis of the number of wedge bolts applied. The carrying capacity of the other elements (crossbars, etc.) may restrict the application.

Technical specifications

Material base body	steel
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2
