Threaded Pin w/Collar DOP M8 40 MM
Group: 1318
Part number 137704
Used to securely connect two components with internal threads
Suitable for applications such as pipes or fittings

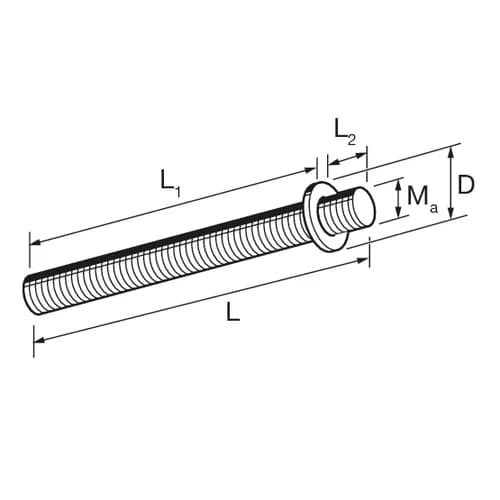

Technical Data
D | 11 mm |
L | 40 mm |
L1 | 34 mm |
L2 | 4 mm |
Ma | M8 |
Load range
-VZ,perm. | 5,50 kN |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
