880-550
Support Bracket WK 880/550 HCP
Group: 1826
Part number 151050
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel

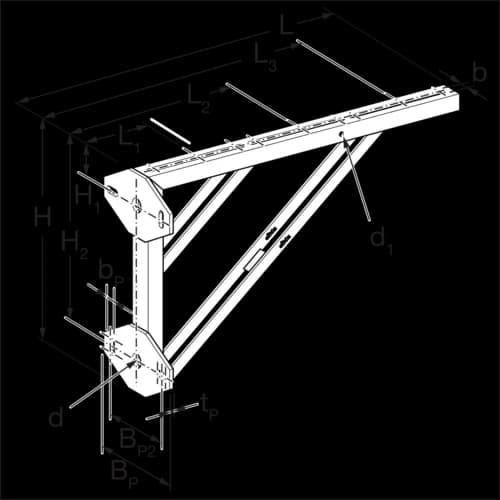

Technical Data
b | 17 mm |
BP | 270 mm |
BP2 | 200 mm |
bP | 17 mm |
d | 17 mm |
d1 | 11 mm |
H | 550 mm |
H1 | 80 mm |
H2 | 470 mm |
L | 880 mm |
L1 | 165 mm |
L2 | 445 mm |
L3 | 725 mm |
tP | 10 mm |
For load values, see additional documents.
Technical specifications
Permissible stress σ{perm.} | 160,00 N/mm² |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
