725-400

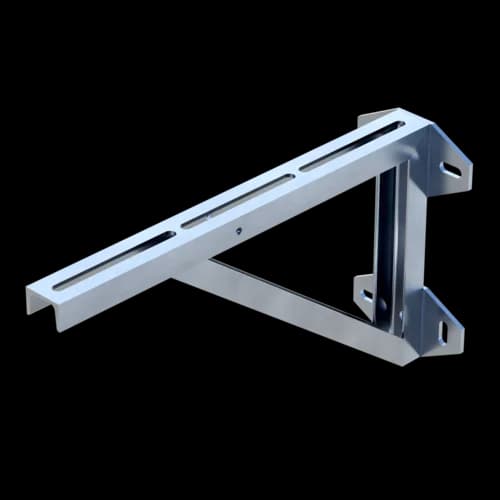

Support Bracket WK 725/400 HCP
Group: 1826
Part number 151041
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel

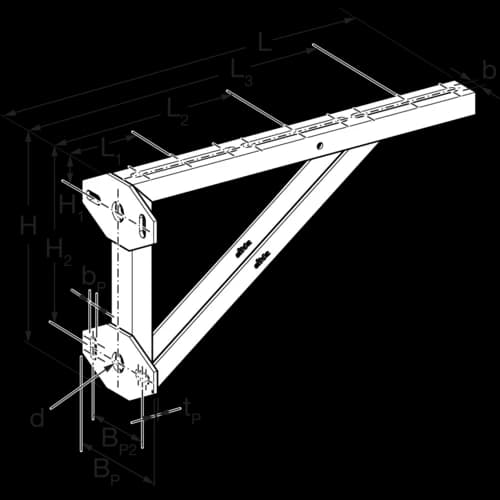

Technical Data
b | 17 mm |
BP | 220 mm |
BP2 | 150 mm |
bP | 17 mm |
d | 17 mm |
d1 | 11 mm |
H | 400 mm |
H1 | 60 mm |
H2 | 340 mm |
L | 725 mm |
L1 | 138 mm |
L2 | 368 mm |
L3 | 598 mm |
tP | 8 mm |
For load values, see additional documents.
Technical specifications
Permissible stress σ{perm.} | 160,00 N/mm² |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
