550-350

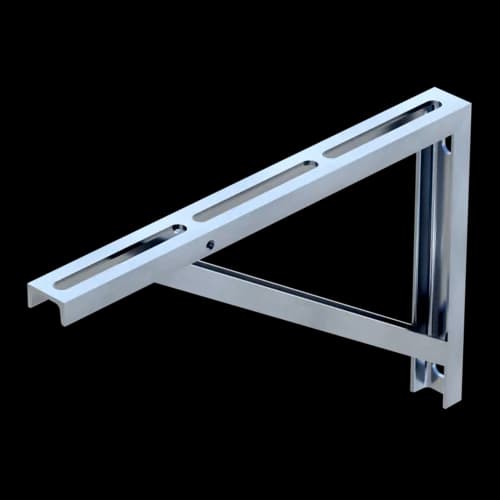

Support Bracket WK 550/350
Group: 1326
Part number 145635
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel
Technical Data
b | 17 mm |
d1 | 10,5 mm |
H | 350 mm |
H1 | 47 mm |
H2 | 322 mm |
L | 550 mm |
L1 | 102,5 mm |
L2 | 279,5 mm |
L3 | 456,5 mm |
L4 | 365 mm |
For load values, see additional documents.
Technical specifications
Permissible stress σ{perm.} | 160,00 N/mm² |
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
Documents
Datasheets / Loads
- Angle Bracket WK - Sikla Product Details (550-350)
PDF (0.13MB)
