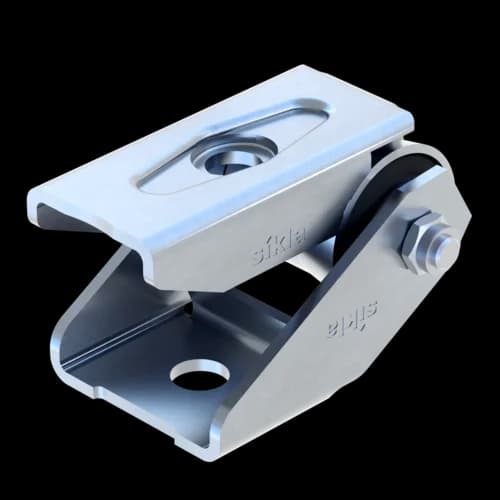

Type SBV
Type SBZ
Sound Absorber SDE 2 SBV/SBZ
Group: 1612
Universally applicable sound insulation element for higher loads and sound insulation requirements in accordance with DIN 4109
Suitable for sound-decoupled mounting of ventilation and air conditioning equipment as well as complete structures
Overview of Types
General Information
Universal sound absorption element for heavy loads. Particularly suitable for soundproof installation of sound-insulated fixed points of devices in the fields of ventilation and air conditioning. Can be fixed either directly to building components by means of an M16 heavy duty anchor or to steel structures. It is also possible to mount the Sound Absorber onto Sikla Channels (recommended from size 41/41 onwards), or to insulate complete channel structures from the building structure. The element is also suitable as joint fixing for channels on angular ceilings, walls and floors.
Certification
Technical specifications
Max. temperature | 100 °C |
Min. temperature | -30 °C |
Insertion Isolation | 15 dB(A) |
Bulk Density | 650,00 kg/m³ |
Material base body | steel |
Material insulation body | PUR |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
SDE 2-SBV | 10,00 kN | 10,00 kN |
SDE 2-SBZ | 10,00 kN | 10,00 kN |
Hinweis:
Querkräfte erfordern zusätzliche Abstützungen.
Dimensionierung des Ankers und weiterer Verbindungselemente beachten.
Software
This product is available in the following software.
Installation
For soundproof fixed points, the use of Sikla Stabil Pipe Clamps is recommended. Installation can be made either as
a) single point connection (centric on the 3G nut of a Stabil D-3G) or as
b) two point connection (on both sides of a Stabil D)
Connection to building structure: 16,5 mm
Connection to system: 17,0 mm
