Type FP-1

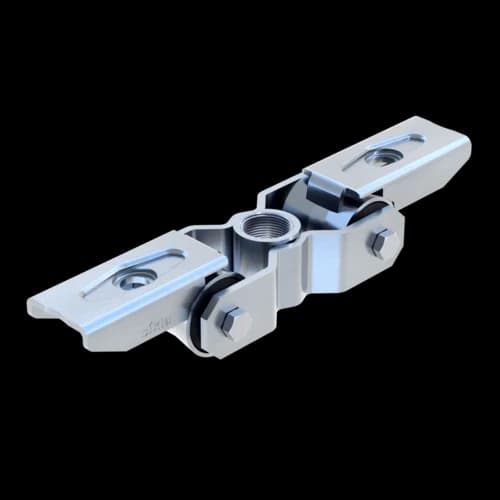

Sound Absorber SDE 2-FP 1
Group: 1612
Part number 161071
Universally applicable sound insulation element for higher loads and sound insulation requirements in accordance with DIN 4109
Suitable for individual suspension on threaded tubes up to 1" and as a base for soundproofed fixed points
Technical Data
The joint bracket, which is to be connected with the support system, is pre-assembled with two identical base components using two M10 hexagon bolts and safety nuts.

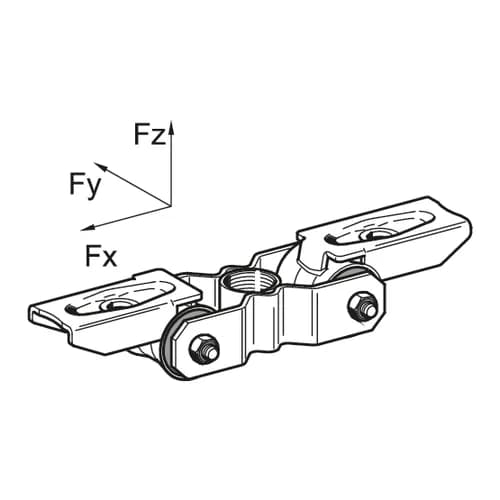

Load range
-VX,perm. | 20,00 kN |
VX,perm. | 20,00 kN |
-VZ,perm. | 20,00 kN |
VZ,perm. | 20,00 kN |
Lateral forces require additional support.
Dimensioning of the anchor and of further joining elements has to be taken into consideration.

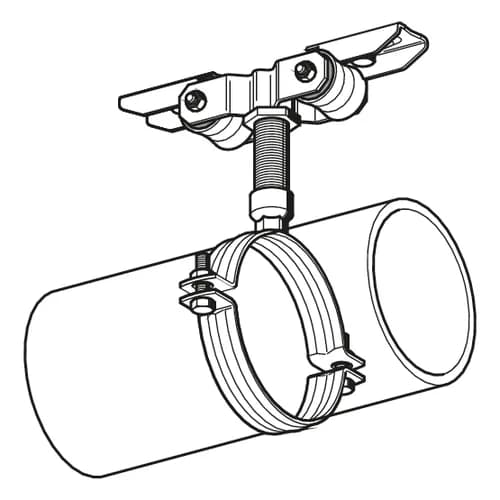

In fixed point constructions as shown in the picture below, the fixed point force is limited by the permissible bending moment of the threaded tube. (For load chart see "Installation Guideline").
Technical specifications
Max. temperature | 100 °C |
Min. temperature | -30 °C |
Insertion Isolation | 15 dB(A) |
Bulk Density | 650,00 kg/m³ |
Material base body | steel |
Material insulation body | PUR |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
For soundproof single point installations and for fixed points we recommend to connect the SDE 2-FP 1 to the centric thread connection of the Stabil D-3G.
When using the 1' thread of the clamp, a 1' Locking Nut has to be used.
For mounting on Sikla channels, profiles from type 41/45 are recommended.
