Group: 1305
Part number 152972

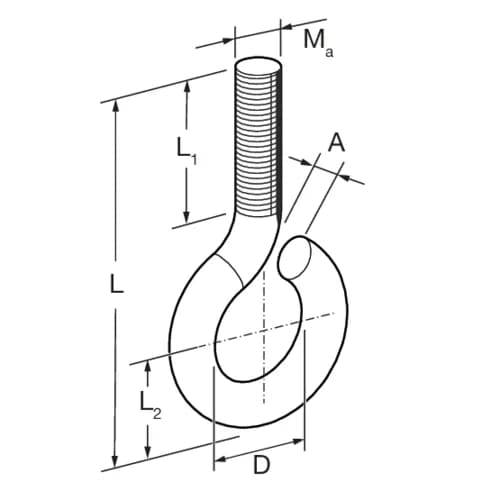

Connection element for suspended pipe supports.

A | 10 mm |
D | 30 mm |
L | 110 mm |
L1 | 40 mm |
L2 | 31 mm |
Ma | M16 |
-VZ,perm. | 15,00 kN |
Load figure applies to closed and welded conditions.
Material base body | steel |
Surface | uncoated |
Corossion class | C2 |
Certification
