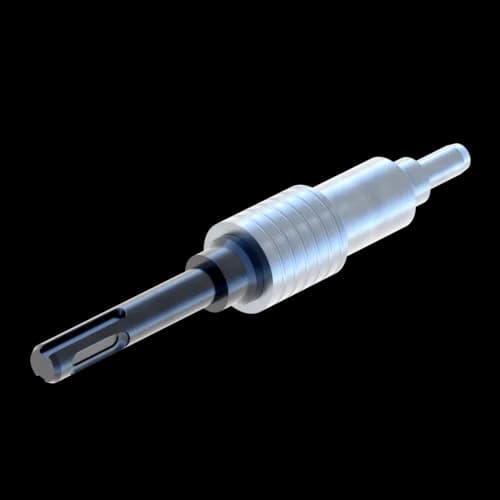

Plug-On Setting Tool ANT ASW M10 X 40
Group: 8103
Part number 116641
Plug-on Setting Tool simplifies the installation of Drop-In Anchors
Reduces assembly time and effort for economical installation
Technical Data
Expanding mandrel incl. collar drill
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
| Type | Suitable for Drop-in anchor | Suitable Drill Bit BB |
|---|---|---|
| ASW M8 x 25 | AN ES M8 x 25 | ANT BB 10 x 25 |
| ASW M8 x 30 | AN ES M8 x 30 | ANT BB 10 x 30 |
| ASW M8 x 40 | AN ES M8 x 40 | ANT BB 10 x 40 |
| ASW M10 x 25 | AN ES M10 x 25 | ANT BB 12 x 25 |
| ASW M10 x 30 | AN ES M10 x 30 | ANT BB 12 x 30 |
| ASW M10 x 40 | AN ES M10 x 40 | ANT BB 12 x 40 |
