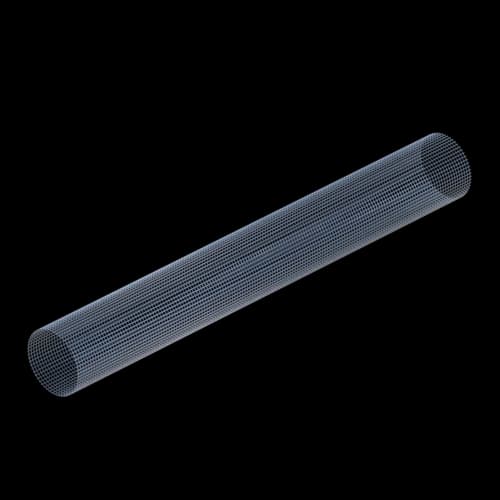

Perforated Sleeve VMU-SH 12X1000 M8
Group: 1410
Part number 110564
Perforated sleeve to be used in perforated brick in combination with Anchor Rods VMU
VersionVM-SH with convenient arrester clack, to avoid slipping into the drill hole
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1410
Part number 110564
Perforated sleeve to be used in perforated brick in combination with Anchor Rods VMU
VersionVM-SH with convenient arrester clack, to avoid slipping into the drill hole
Sikla Anchor Injection Systems
PDF (8.81 MB)
Delivery date upon request – goods are procured on an order-by-order basis.
Primary element material | steel |
Corrosion protection class | C2 |
The following types are procured on an order-by-order basis: 16x85, 12x1000, 16x1000, 22x1000
1. Drill hole and blow out/brush.
2. Flush insert Perforated Sleeve into drill hole. In case of several drill holes, prepare all dowel drills in order to avoid interruptions during injection of the adhesive. The Perforated Sleeve will be filled almost completely with the injection adhesive.
3. Insert Anchor Rod with spiral, rotating movement. The adhesive being displaced by the Anchor Rod escapes through the perforation and effectuates an adhesion of the system in the hollow spaces of the wall during hardening process. The hardened injection adhesive gives a secure fastening to the base material.
Maximum usable length t(fix) [mm] for the application in solid or perforated brick:
| Type | VM-SH 12 x 80 | VM-SH 16 x 85 | VM-SH 16 x 130 | VM-SH 20 x 85 | VM-SH 20 x 130 |
|---|---|---|---|---|---|
| VMU-A 8-20/110 | 20 | 15 | - | - | - |
| VMU-A 8-55/145 | 55 | 50 | 5 | - | - |
| VMU-A 10-30/130 | - | 35 | - | - | - |
| VMU-A 10-50/150 | - | 55 | 10 | - | - |
| VMU-A 12-15/120 | - | - | - | 20 | - |
| VMU-A 12-50/155 | - | - | - | 55 | 10 |
| VMU-A 16-15/160 | - | - | - | 55 | 10 |
Certification
