Stabil M16
Mounting Plate GPL ST M16
Group: 1227
Part number 138352
For wall, ceiling and floor installation of mounting elements in M&E services

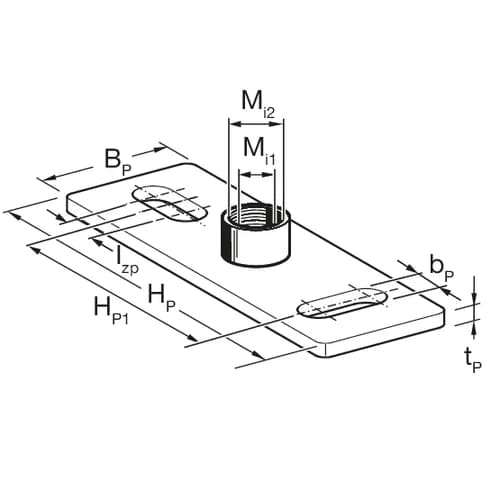

Technical Data
BP | 40 mm |
bP | 11 mm |
HP | 120 mm |
HP1 | 80 mm |
IZP | 14 mm |
Mi1 | M16 |
tP | 5 mm |
Load range
-VZ,perm. | 8,50 kN |
Permissible bending moment Mb,perm. | 70,3 Nm |
Limitation of max. perm. bending moment caused by the Mounting Plate or the loading capacity of the grub screw or of the threaded tube.
σ(zul) ≤ 160 N/mm² f(zul) < 5 mm
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
| Type | Max. lever arm [mm] | Welding method |
|---|---|---|
| Normal M8 | 150 | resistance welding |
| Normal M10 / M10 RL | 200 | resistance welding |
| Normal 2G M8/M10 | M8: 150 M10: 200 |
resistance welding |
| Normal R 1/2" | 300 | Widerstandsschweißung |
| Stabil M10 | 200 | resistance welding |
| Stabil M12 | 300 | resistance welding |
| Stabil M16 | 300 | slot welding |
| Stabil R 1/2" | 350 | slot welding |
| Stabil R 3/4" | 450 | slot welding |
| Stabil R 1" | 500 | slot welding |
