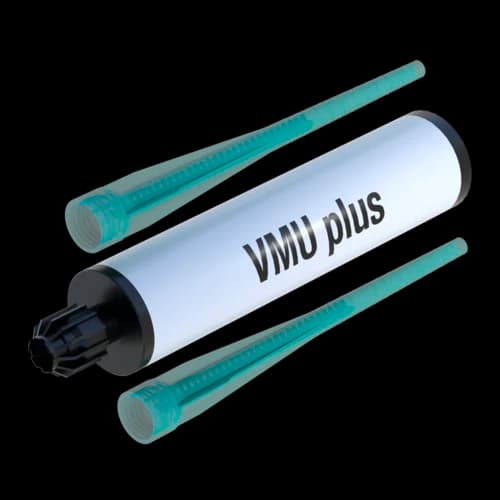

Injection System VMU PLUS 280
Group: 1409
Part number 114176
Sikla VMU plus is a universal chemical fastening system for almost all applications and building materials; suitable for cracked and non-cracked concrete, solid and perforated brick
Used with Resin Anchor Rod VMU-A or standard threaded rod with strength certification; dispenser gun injects components into drill hole or perforated sleeve for secure fastening
Approved for seismic action under performance category C1 (Concrete)
Technical Data
Technical specifications
Material base body | Vinyl ester basis, styrene-free |
Corossion class | C2 |
Certification
Extract from permissible service conditions of ETA-15/0270 (Resin Anchor Rod VMU-A) accessible online.
Sikla Approval ETA-15/0270, ETA-17/307
Installation
1. Drill hole and clean with dust removal pump. For several drills, first prepare the drill holes to avoid interruptions while injecting the mortar.
2. Inject the adhesive.
3. Immediately insert (screw in with spiral rotation) the Resin Anchor Rod.
Opened cartridges can be re-used with a new Mixing Nozzle.
Documents
- Injection System VMU plus - ETA 17/0307
PDF (21.36MB)
- Injection System VMU plus - Fire resistance of concrete
PDF (5.14MB)
- Technical Data - Concrete Application VMU Plus
PDF (0.18MB)
- Sikla Anchor Injection Systems
PDF (8.81MB)
- VMU plus - Safety Data Sheet
PDF (0.30MB)
- DoP - Injection System VMU plus Concrete
PDF (8.17MB)
