High Temperature Pipe Shoe LD-HT-HV 200 266-273 (DN 250_10'')

Group: A767

Part number 801242

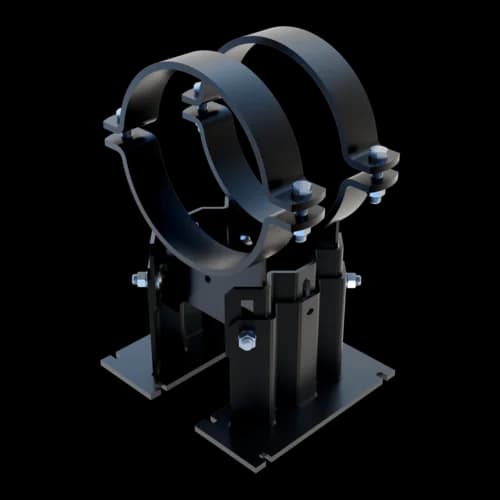

Double-clamp, dual base Pipe Shoe, height-adjustment in steps of 2.5mm, delivery height of 200mm- suitable for sliding pipe supports

Designed for use in temperatures up to 500°C, with material-dependent correction factors for load determination in accordance with DIN EN 13480-3.

Suitable for steel beams, with a minimum flange width of 80 mm and flexible in combination with other Sikla components to create guide or fixed points.

Technical Data

Documents

Brochures

Sikla Pipe Supports - Comprehensive Solutions for Secure and Efficient Installations
PDF (5.52 MB)

b	50 mm
BG₁	280 mm
D	273 mm
D₁	273 mm
H	200 mm
H_{V min}	171 mm
H_{V max}	223,5 mm
S_L	55 mm
S_G	M12
W	90°
t	5 mm

The upper part and the two lower parts are bolted together allowing height adjustment. In order to reduce the spacings of the lugs the pipe clamps from DN 300 are rotated by 45° (see illustration).

Technical specifications

Max. temperature

500 °C

Pipe shoe static coefficient of friction u (without sliding plate) - siFramo and siMotec

0,3

Salt spray test

Resistance > 500 hours

Primary element material

steel

Delivery time on request - Made-to-order goods.

Installation

To guarantee that both sliding plates rest correctly, both webs must be adjusted to exactly the same height.

Type	Height H as delivered [mm]	Height H Range [mm]
HV 200	200	171 - 223,5

Tightening torque screw connections

Clamping bolts	Tightening torque [Nm]	Height adjustment	Tightening torque [Nm]
DN 200	50	Bolts in the bar	80
DN 250 - 600	60	Bolts in the bar	80
