Beam Clamp TCS F VDS/FM M8/M10
Group: 1337
Part number 116488
Solid element designed for connecting pipes, ducts and other equipment to steel sections
Self-locking mechanism allows two-handed operation and quick, economical assembly

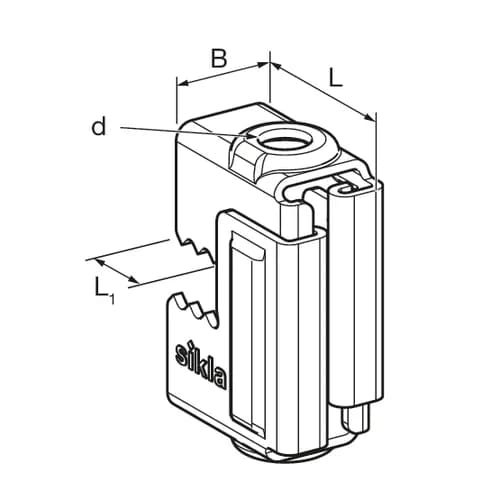

Technical Data
B | 27 mm |
d | 10,5 mm |
L | 40,75 mm |
L1 | 17 mm |
Load range
-VZ,perm. | 3,50 kN |
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Place the beam clamp around the flange and push the two components together. Pass the threaded rod through the beam clamp and tighten both nuts (tightening torque 10 Nm).
Clamping range on parallel flange: 30 mm
Note: Follow the assembly instructions!
For FM systems, M10 only!
