VAS 80/140
Group: A705
Part number 802796
Modification of siMotec pipe shoes to a double-sided variable axial stop for use with traditional steel beams
Allows axial movement of the pipe shoe within predefined displacement limits
Restricts movement in both axial directions

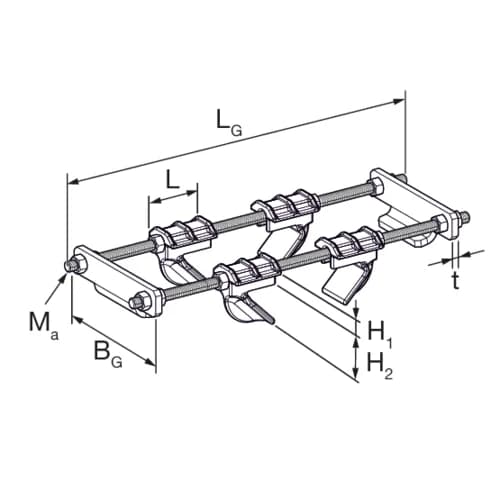

BG | 172,5 mm |
H1 | 15,3 mm |
H2 | 42 mm |
L | 60 mm |
LG | 500 mm |
Ma | M12 |
t | 8 mm |
Axial stop variable VAS consists of:
4 Clamping hooks
2 Grub screws M12 x 500 mm
2 Axial stop
12 Hexagon nuts
-VX,perm. | 12,00 kN |
VX,perm. | 12,00 kN |
Load capacities correspond to the values of the fixed point set XS, see documentation in the catalogue. However, maximum axial load is 12 kN per axial stop.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
The specified tightening torques must be observed for the connection to the beam. The 500 mm threaded rods are cut to the required length on site. The required amount of axial movement is adjusted using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.
Max. Beam flange thickness t ≤ 30 mm
Application:
| Type | For flange width [mm] |
|---|---|
| VAS 80/140 | 80 - 140 |
| VAS 160/260 | 141 - 260 |
| VAS 280/300 | 261 - 300 |
Tightenning Torque
| Flange Thickness [mm] | Beam Width 80 - 220 mm Tightenning Torque [Nm] |
Beam Width 221 - 300 mm Tightenning Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
