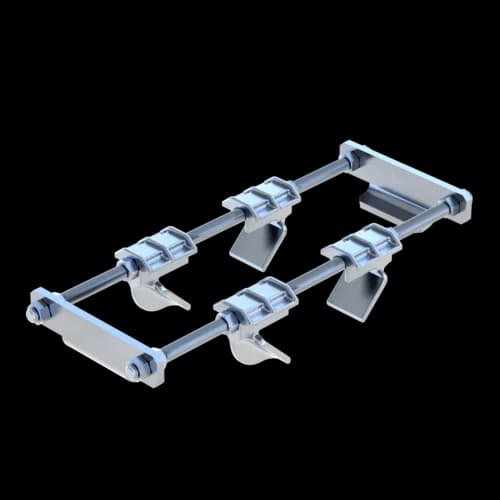

VAS 80/140

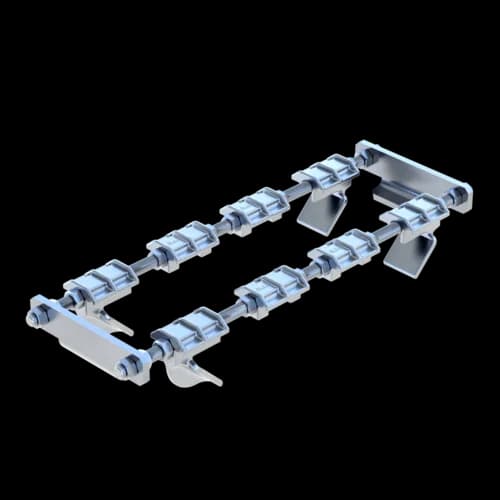

VAS 280/300
Group: A705
Modification of siMotec pipe shoes to a double-sided variable axial stop for use with traditional steel beams
Allows axial movement of the pipe shoe within predefined displacement limits
Restricts movement in both axial directions
The specified tightening torques must be observed for the connection to the beam. The 500 mm threaded rods are cut to the required length on site. The required amount of axial movement is adjusted using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.
Max. Beam flange thickness t ≤ 30 mm
Application:
| Type | For flange width [mm] |
|---|---|
| VAS 80/140 | 80 - 140 |
| VAS 160/260 | 141 - 260 |
| VAS 280/300 | 261 - 300 |
Tightenning Torque
| Flange Thickness [mm] | Beam Width 80 - 220 mm Tightenning Torque [Nm] |
Beam Width 221 - 300 mm Tightenning Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
Modification of siMotec pipe shoes to a double-sided variable axial stop, for use with traditional steel beams. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in both axial directions.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,perm. | VX,perm. |
VAS 80/140 HCP | 12,00 kN | 12,00 kN |
VAS 160/260 HCP | 12,00 kN | 12,00 kN |
VAS 280/300 HCP | 12,00 kN | 12,00 kN |
Load capacities correspond to the values of the fixed point set XS, see documentation in the catalogue. However, maximum axial load is 12 kN per axial stop.
Also available with DualShield for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Info | Type | Weight | Quantity | Part number | |
| VAS 80/140 HCP | 3,390 kg/pcs. | 1 pcs. | 802796 | ||
| VAS 160/260 HCP | 3,890 kg/pcs. | 1 pcs. | 802799 | ||
| VAS 280/300 HCP | 4,370 kg/pcs. | 1 pcs. | 802800 | ||
