Axial Stop AS 240/260 HCP

Group: A705

Part number 802794

Modification of siMotec pipe shoes to a single-sided axial stop for use with traditional steel beams

Allows axial movement of the pipe shoe within predefined displacement limits

Restricts movement in one axial direction

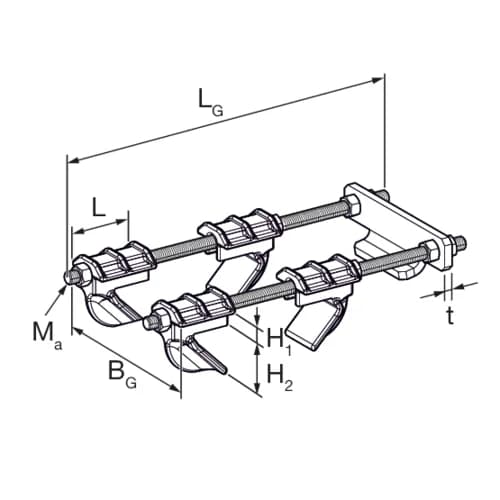

Technical Data

B_G	172,5 mm
H₁	15,3 mm
H₂	42 mm
L	60 mm
L_G	370 mm
M_a	M12
t	8 mm

Axial stop AS consists of:
4 Clamping hooks
2 Threaded rod
1 Axial stop
2 Lift-off preventions
8 Hexagon nuts

Load range

-V_X,perm.	12,00 kN
V_X,perm.	12,00 kN

Load capacities correspond to the values of the fixed point set XS, see documentation in the catalogue. However, maximum axial load is 12 kN per axial stop.

Technical specifications

Primary element material	steel
Connecting element material	steel
Surface finish	HCP
Corrosion protection class	C4

Also available with DualShield for high corrosion protection within C5H environments.

Installation

The specified tightening torques must be observed for the connection to the beam. The required amount of axial movement is adjusted using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.

Max. Beam flange thickness t ≤ 30 mm

Application:

Type	For flange width [mm]
AS 80/120	80 - 120
AS 140/180	121 - 180
AS 200/220	161 - 220
AS 240/260	221 - 260
AS 280/300	261 - 300

Tightenning Torque

Flange Thickness [mm]	Beam Width 80 - 220 mm Tightenning Torque [Nm]	Beam Width 221 - 300 mm Tightenning Torque [Nm]
5 - 10	40	15
11 - 20	25	15
21 - 30	20	15
