From type 80/120 to 200/220
Group: A705
Modification of siMotec pipe shoes to a single-sided axial stop for use with traditional steel beams
Allows axial movement of the pipe shoe within predefined displacement limits
Restricts movement in one axial direction
The specified tightening torques must be observed for the connection to the beam. The required amount of axial movement is adjusted using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.
Max. Beam flange thickness t ≤ 30 mm
Application:
| Type | For flange width [mm] |
|---|---|
| AS 80/120 | 80 - 120 |
| AS 140/180 | 121 - 180 |
| AS 200/220 | 161 - 220 |
| AS 240/260 | 221 - 260 |
| AS 280/300 | 261 - 300 |
Tightenning Torque
| Flange Thickness [mm] | Beam Width 80 - 220 mm Tightenning Torque [Nm] |
Beam Width 221 - 300 mm Tightenning Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |

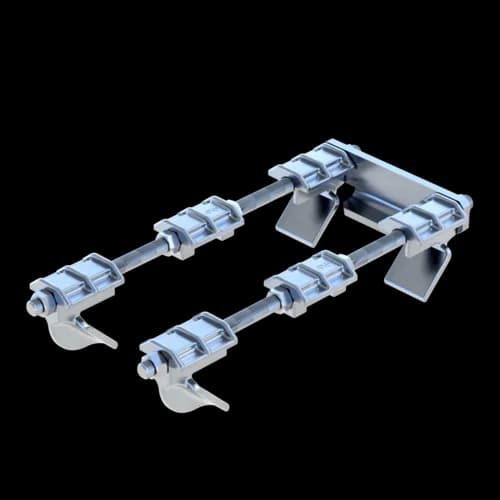

Modification of siMotec pipe shoes to a single-sided axial stop, for use with traditional steel beams. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in one axial direction.
Certification
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,perm. | VX,perm. |
AS 80/120 HCP | 12,00 kN | 12,00 kN |
AS 140/180 HCP | 12,00 kN | 12,00 kN |
AS 200/220 HCP | 12,00 kN | 12,00 kN |
AS 240/260 HCP | 12,00 kN | 12,00 kN |
AS 280/300 HCP | 12,00 kN | 12,00 kN |
Load capacities correspond to the values of the fixed point set XS, see documentation in the catalogue. However, maximum axial load is 12 kN per axial stop.
Also available with DualShield for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Info | Type | Weight | Quantity | Part number | |
| AS 80/120 HCP | 2,540 kg/pcs. | 1 pcs. | 802791 | ||
| AS 140/180 HCP | 2,620 kg/pcs. | 1 pcs. | 802792 | ||
| AS 200/220 HCP | 2,590 kg/pcs. | 1 pcs. | 802793 | ||
| AS 240/260 HCP | 3,140 kg/pcs. | 1 pcs. | 802794 | ||
| AS 280/300 HCP | 3,690 kg/pcs. | 1 pcs. | 802795 | ||
